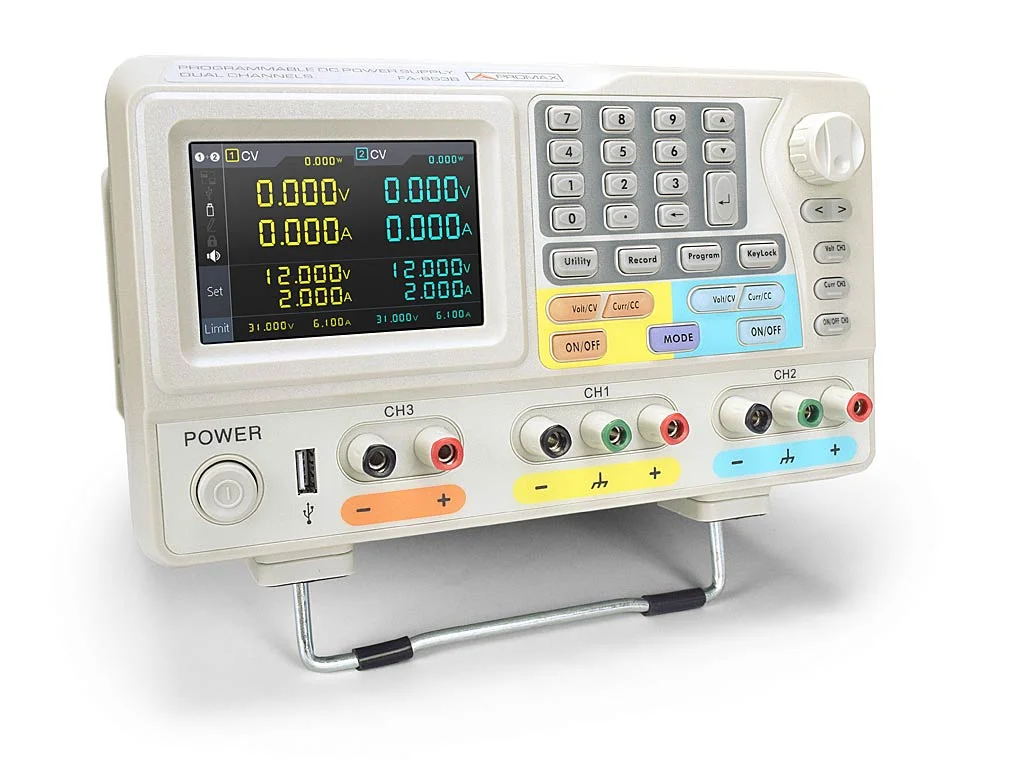

VARIABLE DC POWER SUPPLIES

Programmable 4 modes power supply (independent, parallel, series, channel tracking) with remote control, USB, LAN and RS-232.

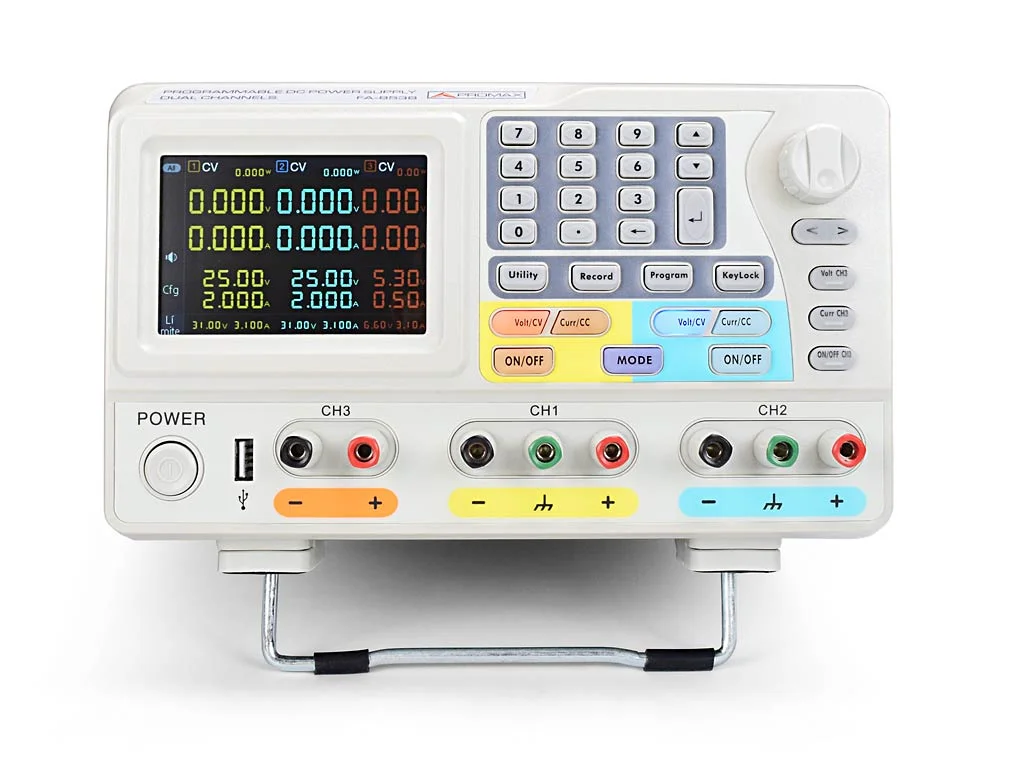

Regulable outputs CH1, CH2 and CH3

CH1 and CH2 modes

Independent Per-output individual control

Parallel Phisically connected in parallel

Serial Phisically connected in series

Channel tracking Output parameters change proportionally

Output voltage

Independent 2x0 to 30 V

Parallel 0 to 30 V

Series 0 to 60 V

CH3 0 to 6 V

Corriente de salida

Independent 2x0 to 3 A

Parallel 0 to 6 A

Series 0 to 3 A

CH3 0 to 3 A

Max output power

CH1, CH2 90 W

CH 3 18 W

Resolution 1 mV, 1 mA

Programmable output

Internal storage 1 M points (100 groups)

Time setting Seconds

Data record function 10K data groups (Voltage, Current, Power)

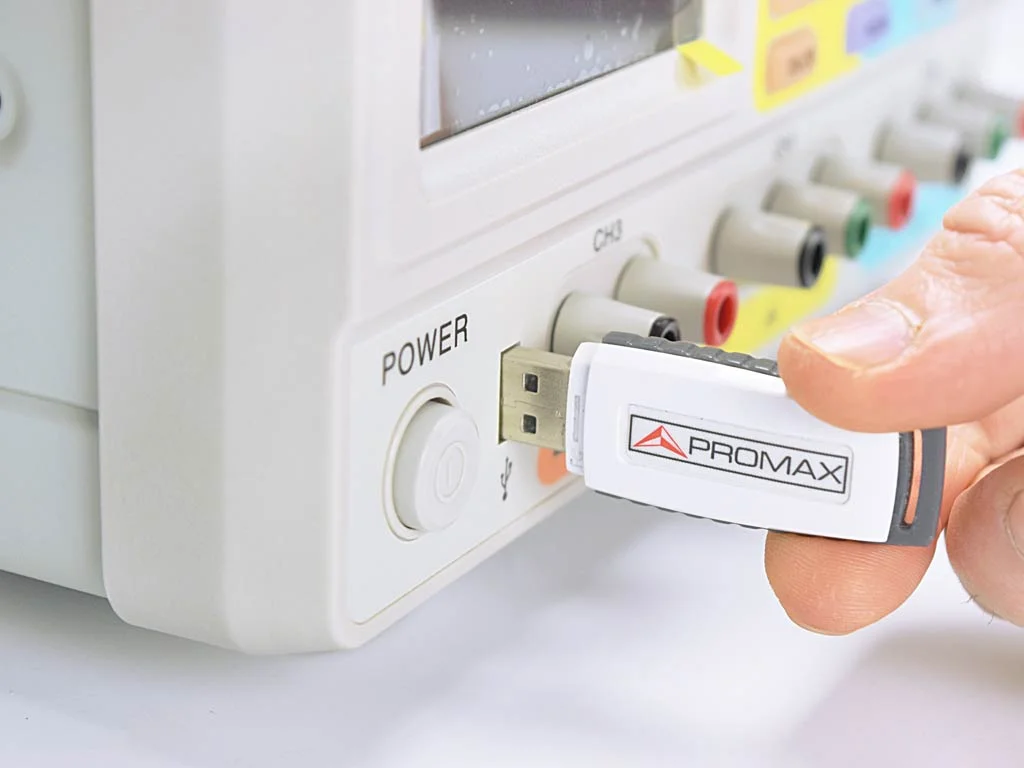

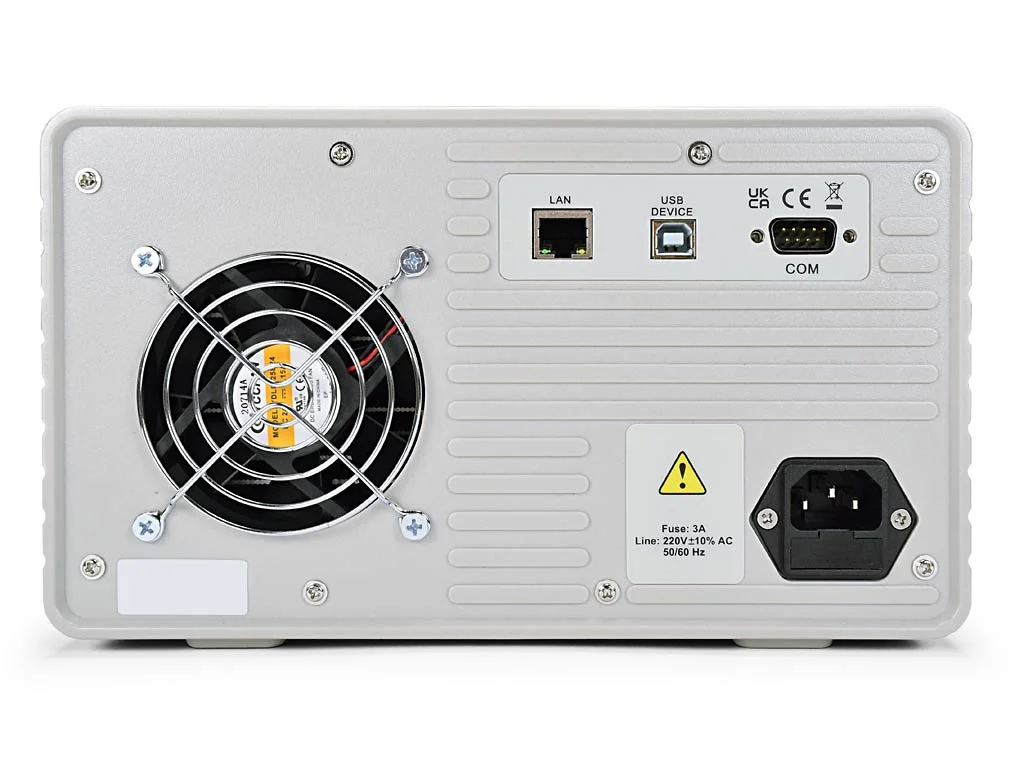

Interfaces USB Host, USB device, RS-232, LAN, Supports USB TMC protocol
