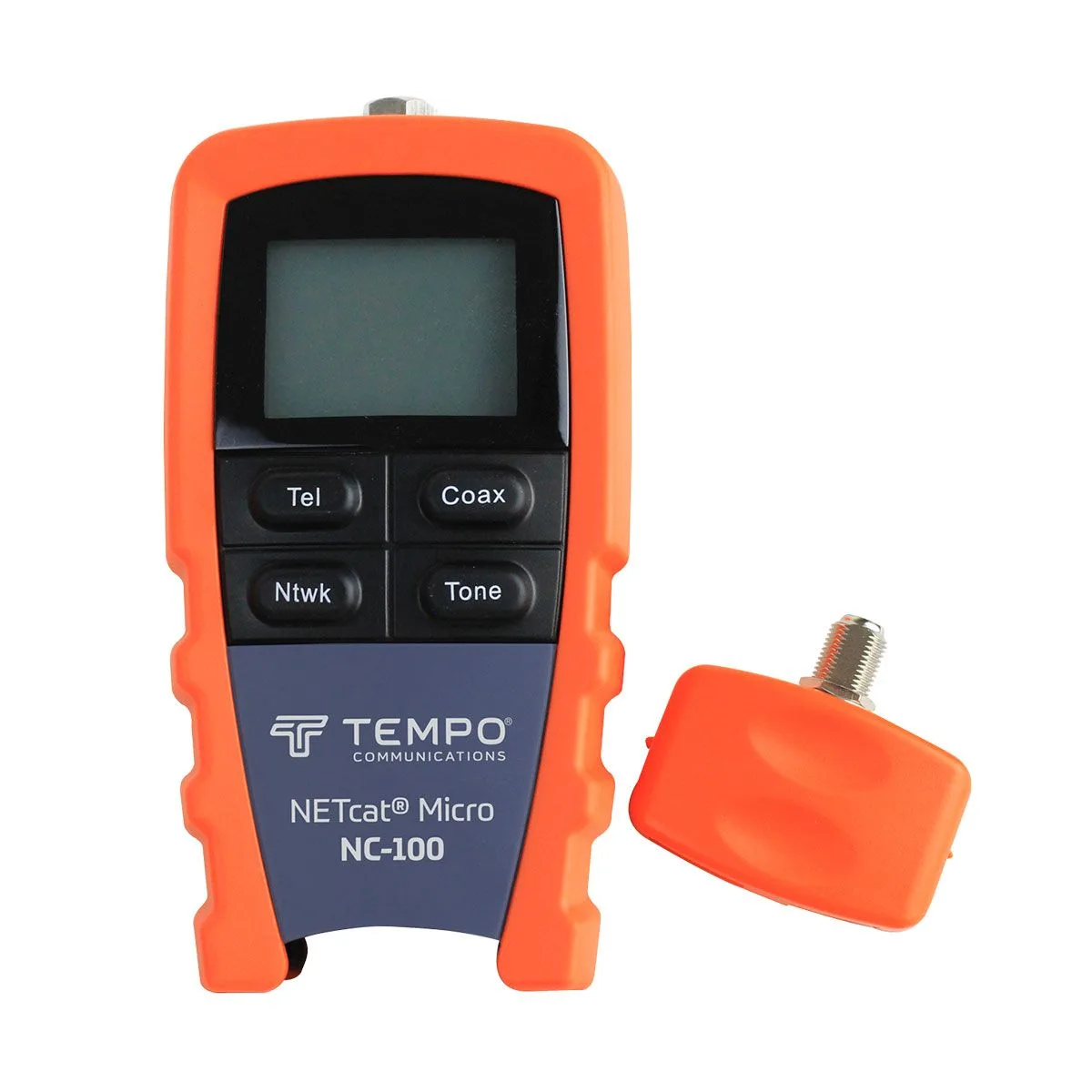

Name: NC-100 NETcat® Micro Wiring Tester
Brand: Tempo Communications
SKU: NC-100

Overview

Detects shorts, opens, reversed polarity, crossed, and split pairs.

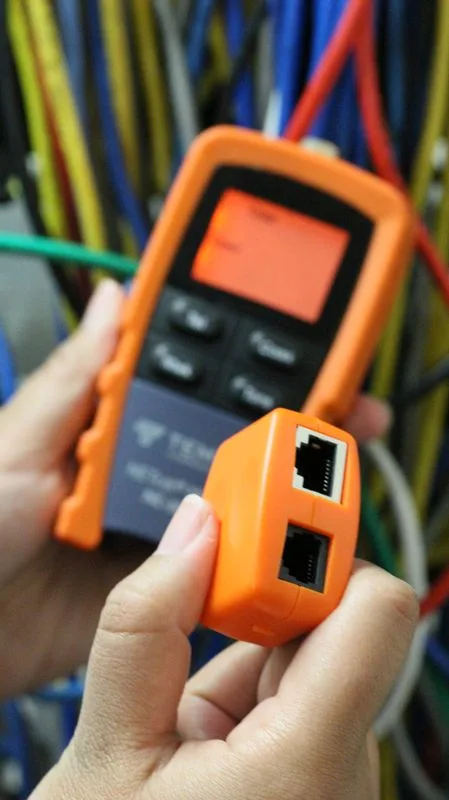

Nested remote allows end-to-end testing of all wiring types.
Simple testing of LAN wiring and phone lines.
Warning of hazardous voltages.
Detection of common wiring and connector errors.
Tracing modes can be adjusted for high performance LAN cables
Tests shielded twisted pair (STP), unshielded twisted pair (UTP) and coaxial cables
TIA/EIA standard wiring pair verification for LAN
USOC standard wiring verification for telephone

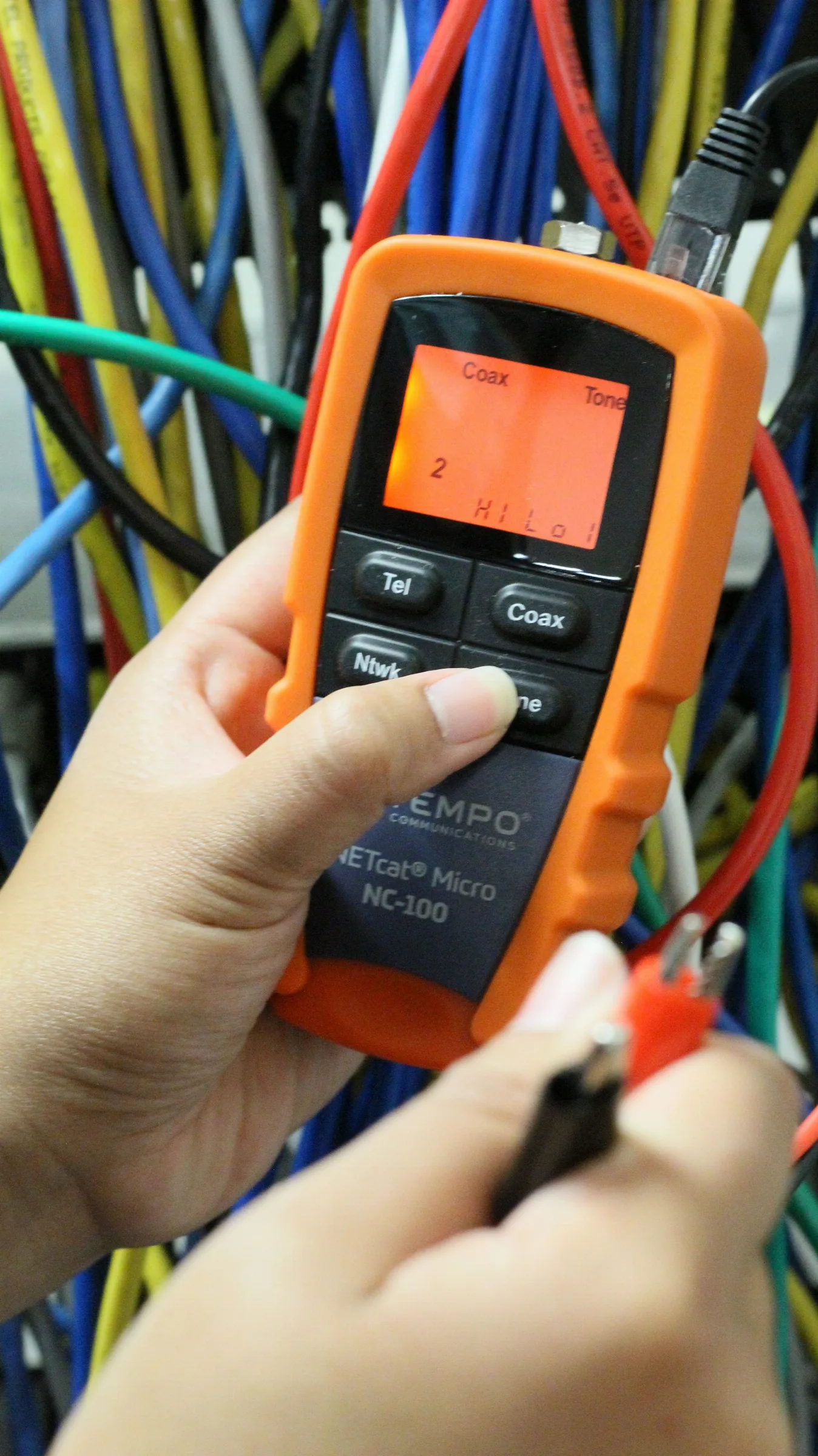

Generates three distinct, selectable digital tone patterns for cable tracing and troubleshooting

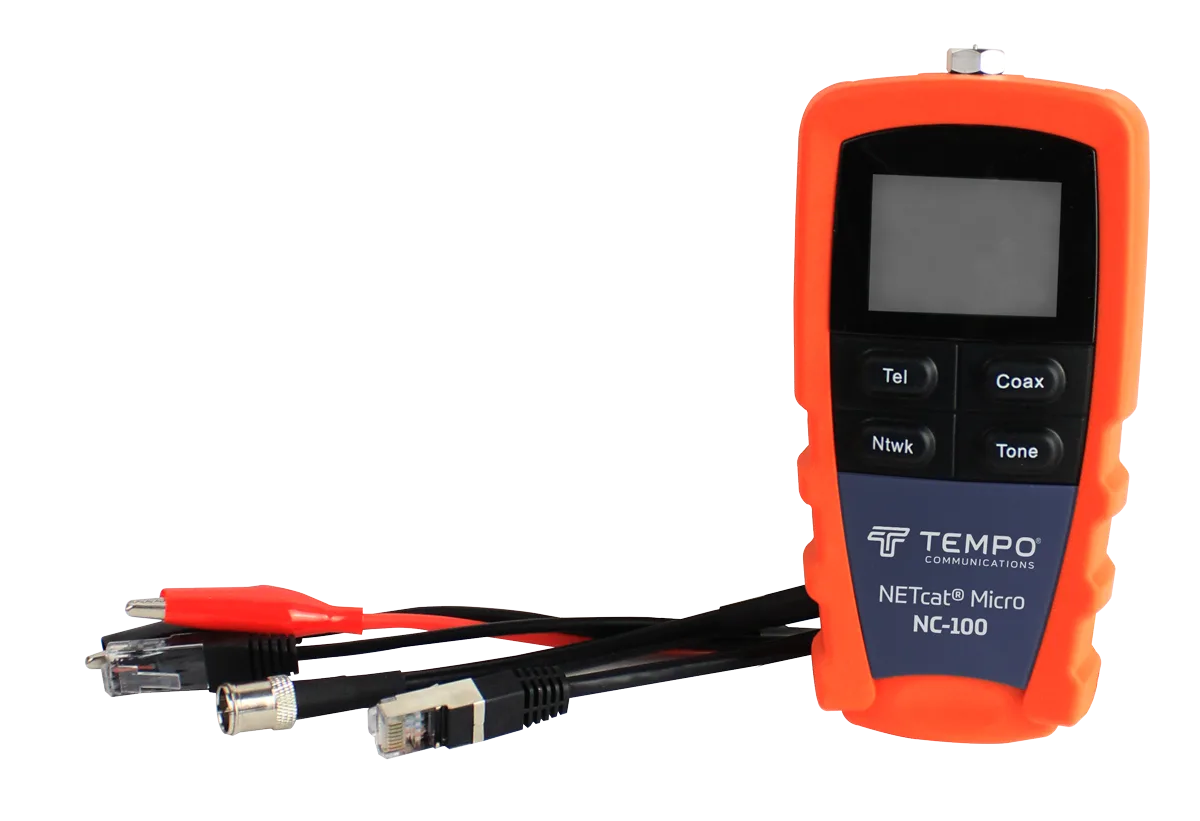

Complete set of connector types standard (telephone, LAN, and coax)
Nested remote allows end-to-end testing of all wiring types
Checks for reversed telephone wires

Specifications

Backlight	LED

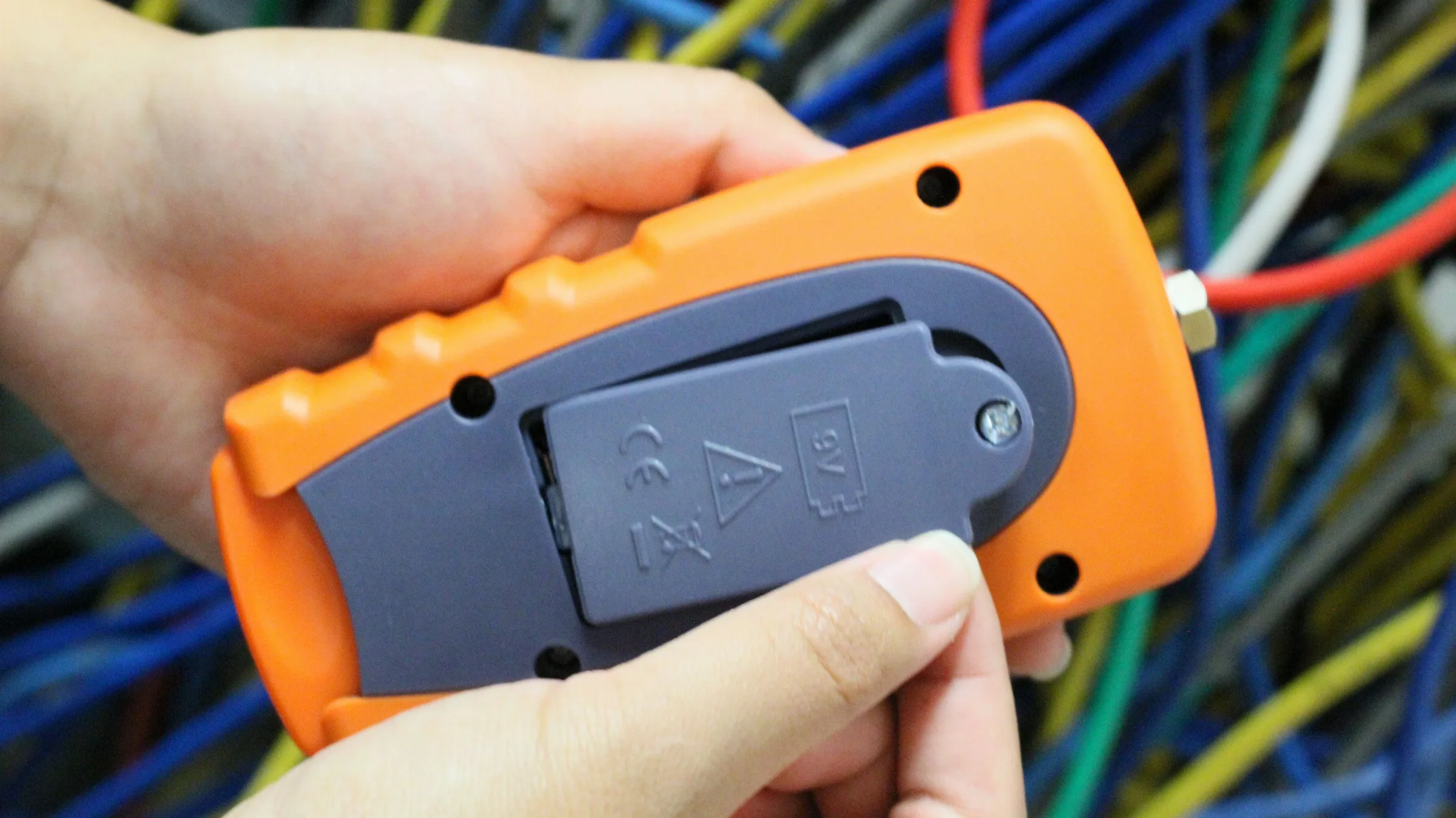

Battery	9 V Alkaline Battery (PP3) (Not Included)
Buttons	Four Momentary Contact Push Button
Size	33 x 70 x 150 mm
Display LCD	Icon And Seven Segment Type
Pair Tracing Frequencies	577 Hz and 983 Hz
Humidity	0 To 95 PCT Non-Condensing

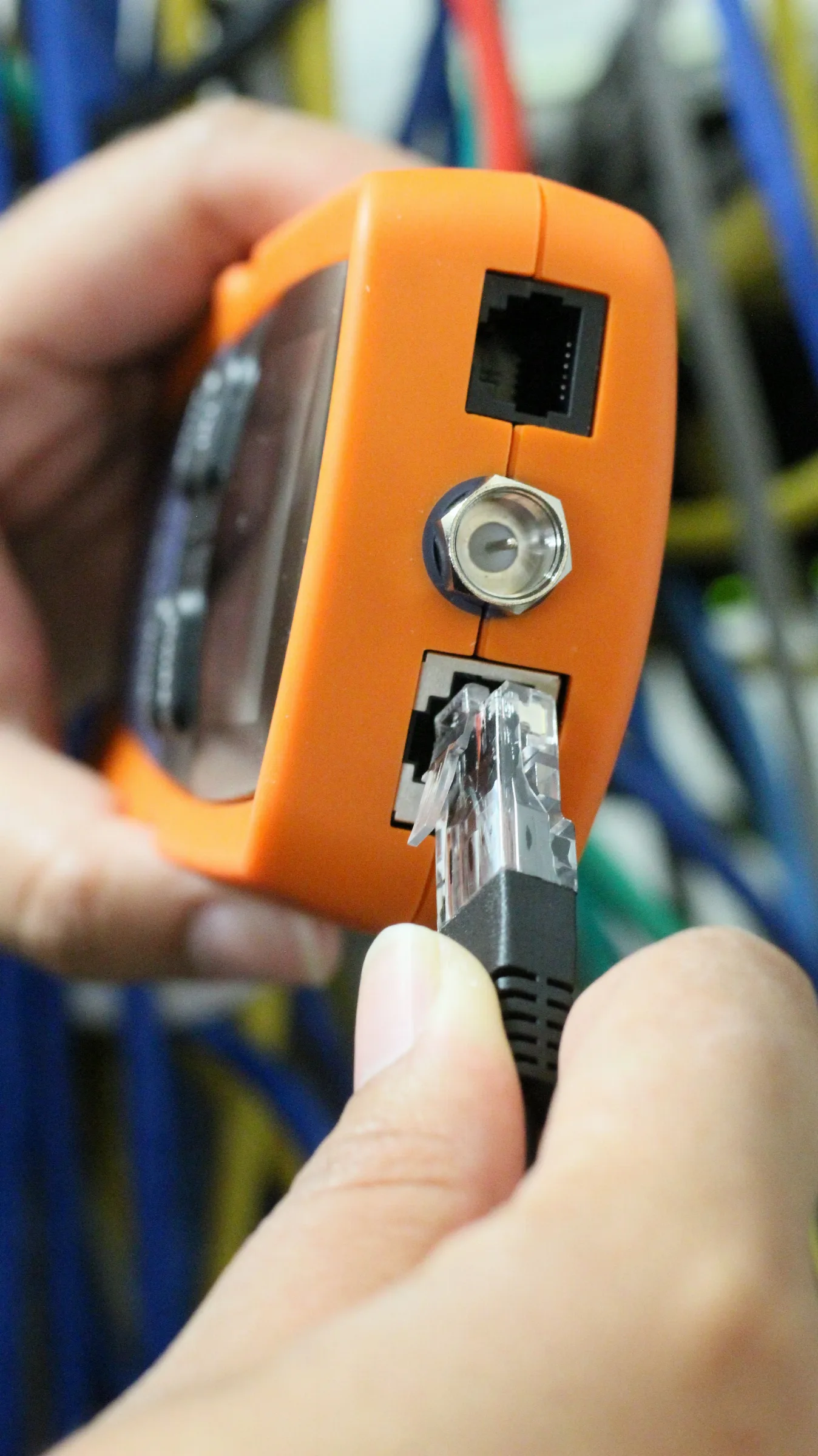

Interface Connections	RJ45 Shielded Socket, RJ12 6-Way Socket, F-Type Threaded Female Coaxial Connectors
Minimum Split Cable Detectable	2 m to 3 m (5 ft to 10 ft); depends on cable type
Three User Selectable Cadences	Alternating Frequencies Of 577 HZ And 983 HZ Are Produced At Three User Selectable Rates
Temperature Range	-10 to +60 °C (Storage); 0 to +50 °C (Operating)
Digital wire-mapper and cable check tool for telephony & LAN twisted pairs and COAX cables	Micro Digital Voice Data And Video Wiring
Weight	220 g (0.5 lb) (including remote unit and a typical battery)
