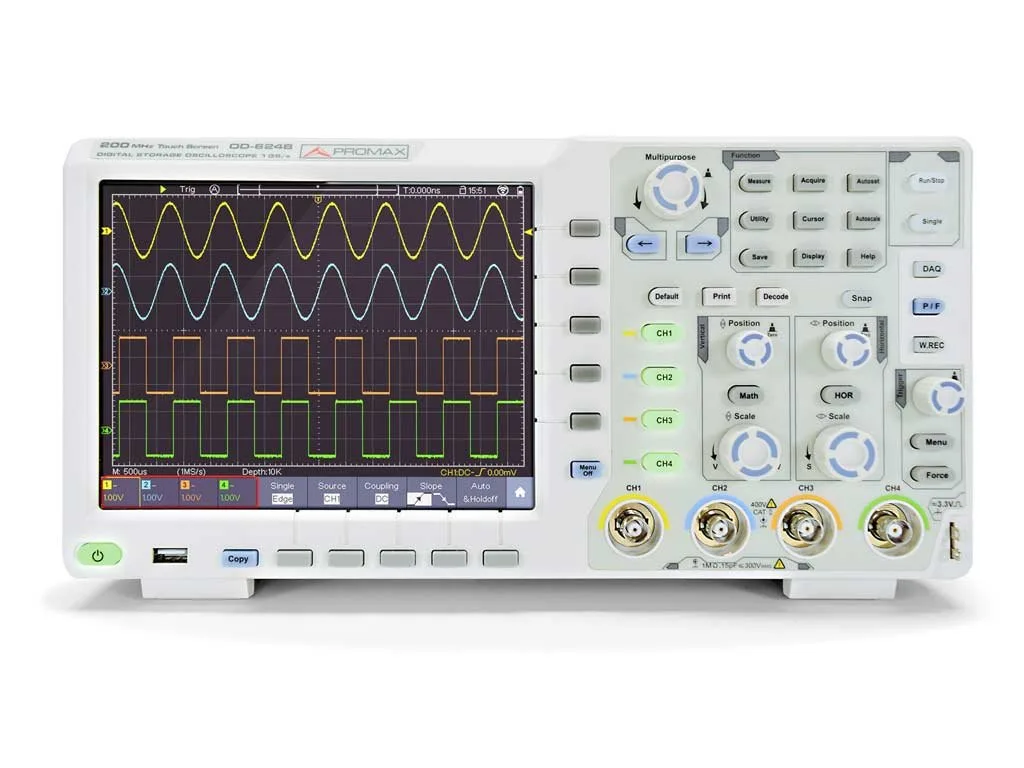

Multitouch Digital Storage Oscilloscope

8” multitouch digital storage oscilloscope. 200 MHz bandwidth, real time sample rate up to 1 GS/s. Connectivity: USB 2.0, USB for file storage, Trigger output (Pass/Fail), LAN and VGA.

BANDWIDTH 200 MHz

SAMPLE RATE 1 GS/s

CHANNELS 4

HORIZONTAL SCALE (s/div) From 2 ns/div to 1000 s/div, 1-2-5 steps

TRIGGER Edge, Pulse, Video, Slope, Runt, Window, Timeout, Nth Edge, Logic, I2C, SPI, RS-232, CAN

RECORD LENGTH 40 M

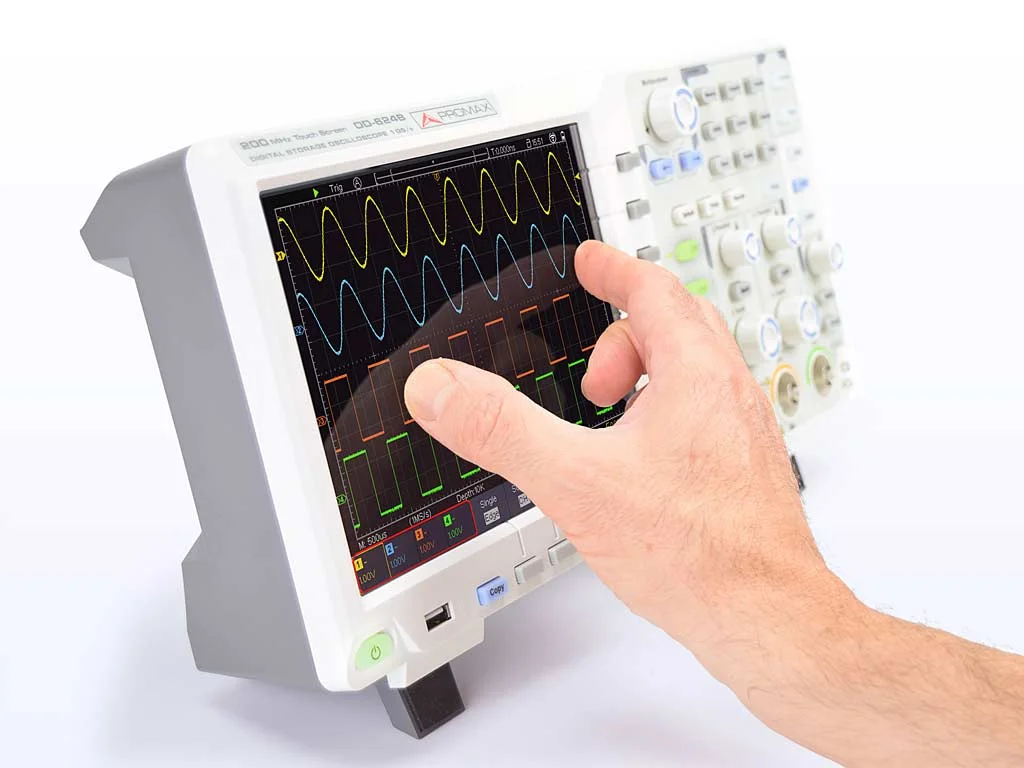

SCREEN 8” color TFT multitouch display, 800x600 pixels

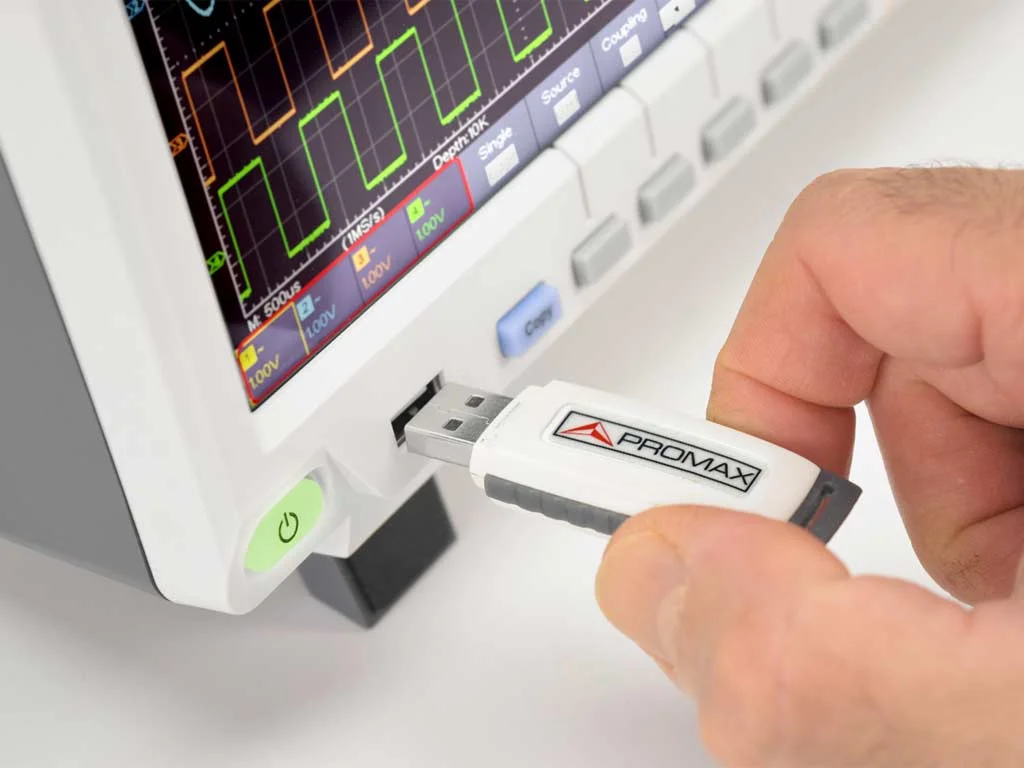

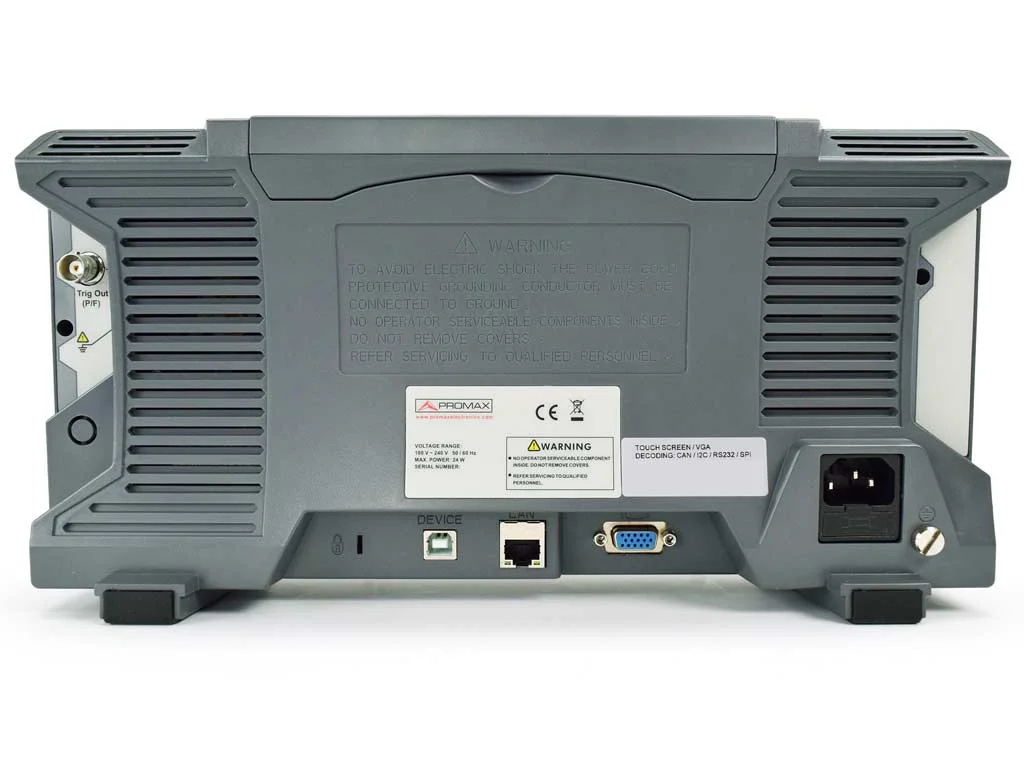

COMMUNICATION INTERFACES USB 2.0, USB for file storage, trigger output (pass/fail), LAN port, VGA port

INCLUDED ACCESSORIES Passive probe (x4), Power cord, USB cable, Quick guide
