Micro Optical Power Meter
Micro Optical Power Meter — 2Micro Optical Power Meter — 3Micro Optical Power Meter — 4Micro Optical Power Meter — 5Micro Optical Power Meter — 6
Tempo Communications

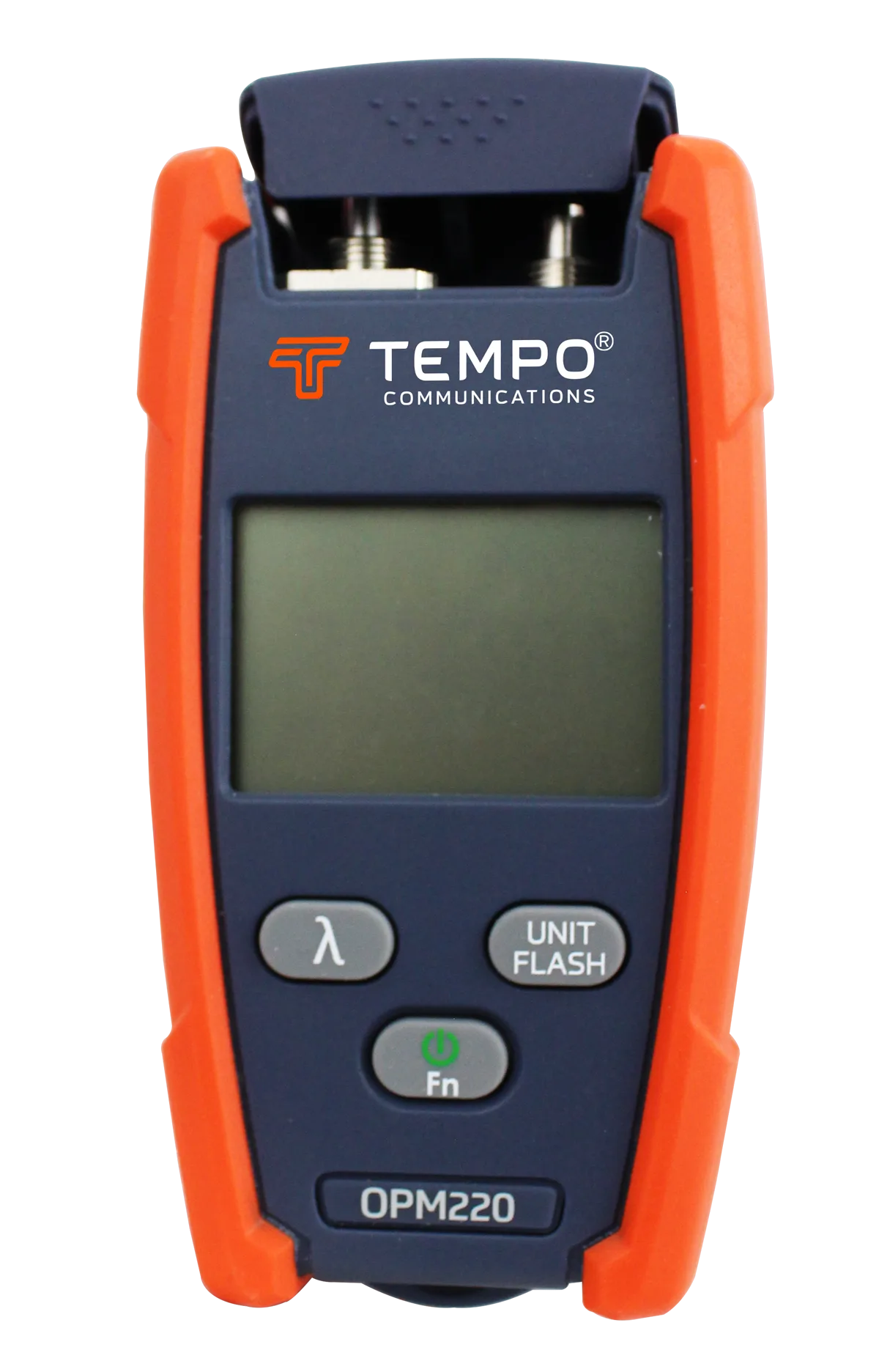

Micro Optical Power Meter

Model: OPM220

Micro Optical Power Meters (OPM210 and OPM220) are available in standard and high-power versions, The Micro OPM supports wavelengths of 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 and 1650nm.
Ask on WhatsApp

Details & specifications


Overview

  1. Standard and High Power Optical Power Meters
  2. Measure Optical Power (dB, dBm & mW)
  3. OPM210 Measuring Range: -70 to + 10dBm (980/1270/1310/1490/1550/1577/1625); -60 to +10dBm (850/1300)
  4. OPM220 Measuring Range: -50 to +26dBm (980/1270/1310/1490/1550/1577/1625); -40 to +26dBm (850/1300)
  5. Accurate Insertion Loss Measurements
  6. Tone and Probe Fiber Networks at 270Hz, 1kHz and 2kHz
  7. Absolute or Referenced Optical Power Measurements

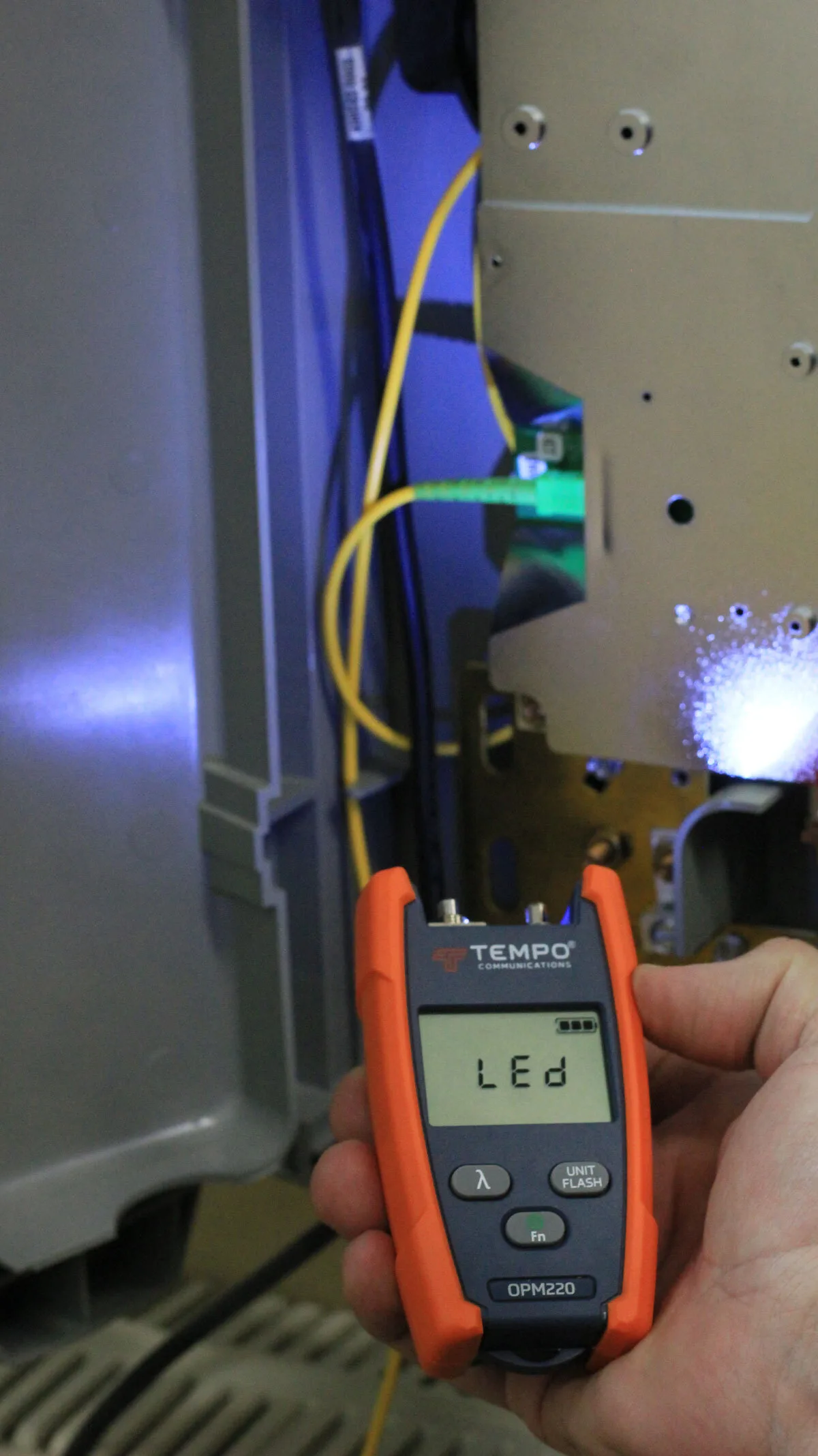

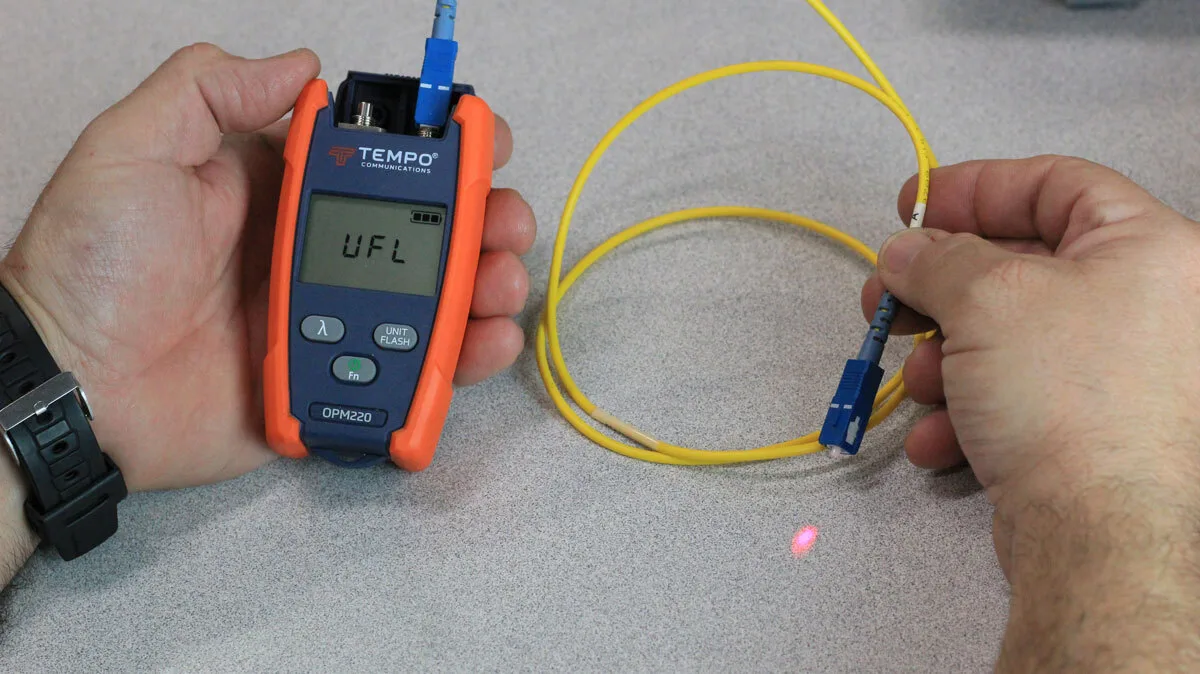

  8. Integrated Visual Fault Locator
  9. Integrated Flash Light
  10. InGaAs detector for Maximum Sensitivity
  11. Wavelengths of 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 and 1650nm.
  12. Universal Bulkheads
  13. Compatible with Singlemode and Multimode Networks
  14. Auto Off or Continuous On Operation
  15. AAA Battery Operation
  16. Supplied with Lanyard.



Specifications

Measuring RangeOPM210: -70 to + 10dBm (1310/1490/1550/1625); -60 to +10dBm (850/1300)
Measuring RangeOPM220: -50 to +26dBm (1310/1490/1550/1625); -40 to +26dBm (850/1300)
Wavelengths850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650nm
Display Resolution0.01dB
ConnectorUniversal 2.5mm
Uncertainty+/-0.50dB
Wavelength Response700 - 1700nm
Tone Frequency270Hz, 1kHz, and 2kHz
Detector TypeInGaAs
Power SupplyAAA x 2 Alkaline
Battery Life>60 Hours (OPM mode)
Operating Temperature-10 to +50°C (<90% Relative Humidity)
Storage Temperature-20 to +60°C (<90% Relative Humidity)
VFL Wavelength650nm +/-20nm
VFL OutputLess than or equal to 1mW/ 2Hz
VFL Range4km
Size106 x 58 x 28mm (4.17 x 2.28 x 1.10”)
Weight106g (0.23lbs)
Automatic Shut-Off10 minutes of no activity
CertificationsCE, RoHS, CDRH, WEEE



Models

OPM210
 Optical Power Meter (-70 to +10dBm)OPM210
OPM220
 Optical Power Meter (-50 to +26dBm)OPM220
