Name: LC Fiber Adapters
Brand: Leviton
SKU: BHCLCSM001

LC Duplex, single-mode, zirconia ceramic sleeve, flanged, blue

APPLICATION

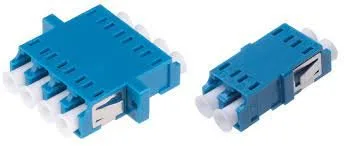

Leviton LC duplex, quad, flanged, and flangeless fiber

adapters are constructed of engineered thermoplastic with

precision zirconia ceramic split sleeves providing low-loss

fiber connections over high and low-temperature extremes.

LC adapters are suitable for any data center, central

office, MDU, CATV, or PON cabling installations using LC

connectors. LC adapters are available with mounting flanges

or flangeless for higher-density applications.

SPECIFICATION

Single-mode and multimode LC duplex and quad, flanged, or

flangeless fiber adapters meet or exceed the requirements

in TIA-568.3-D and TIA-604-10, FOCIS-10, GR-326, or IEC

61300 series, IEC 61754-20. Adapters provide ≤ 0.2 dB

insertion loss and support an operational temperature range

of -40 ºC to +85 ºC and come with protective caps.
