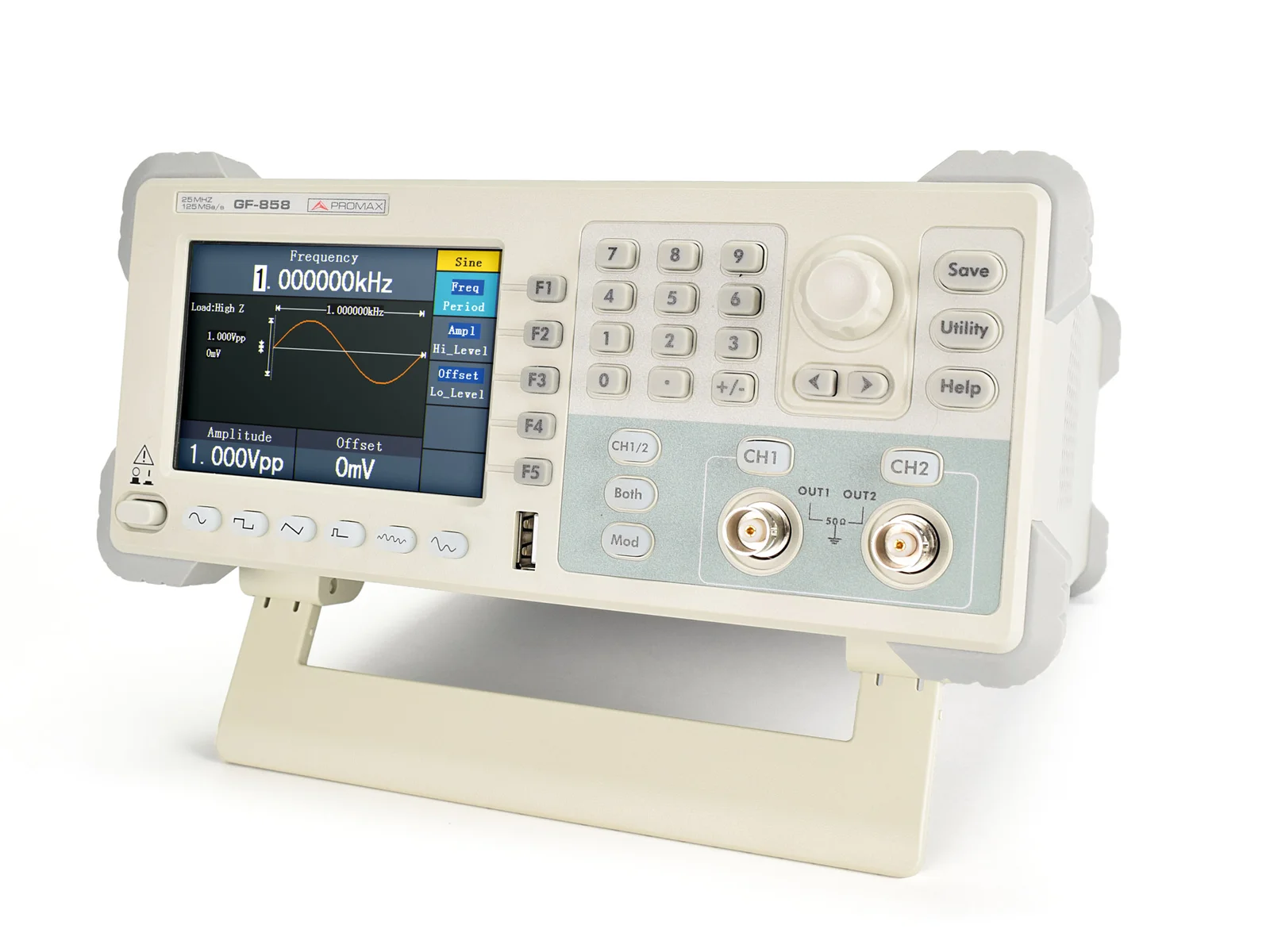

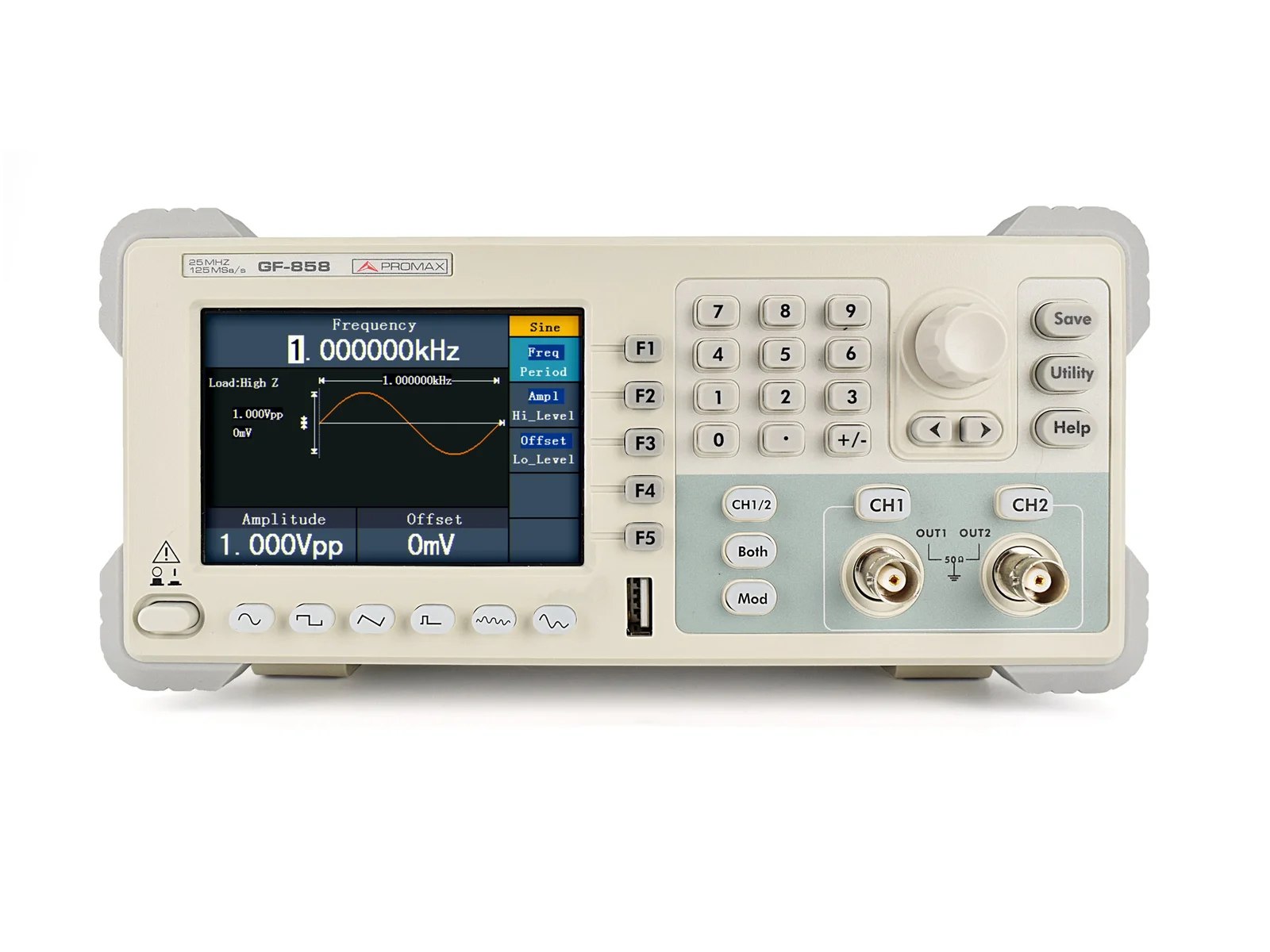

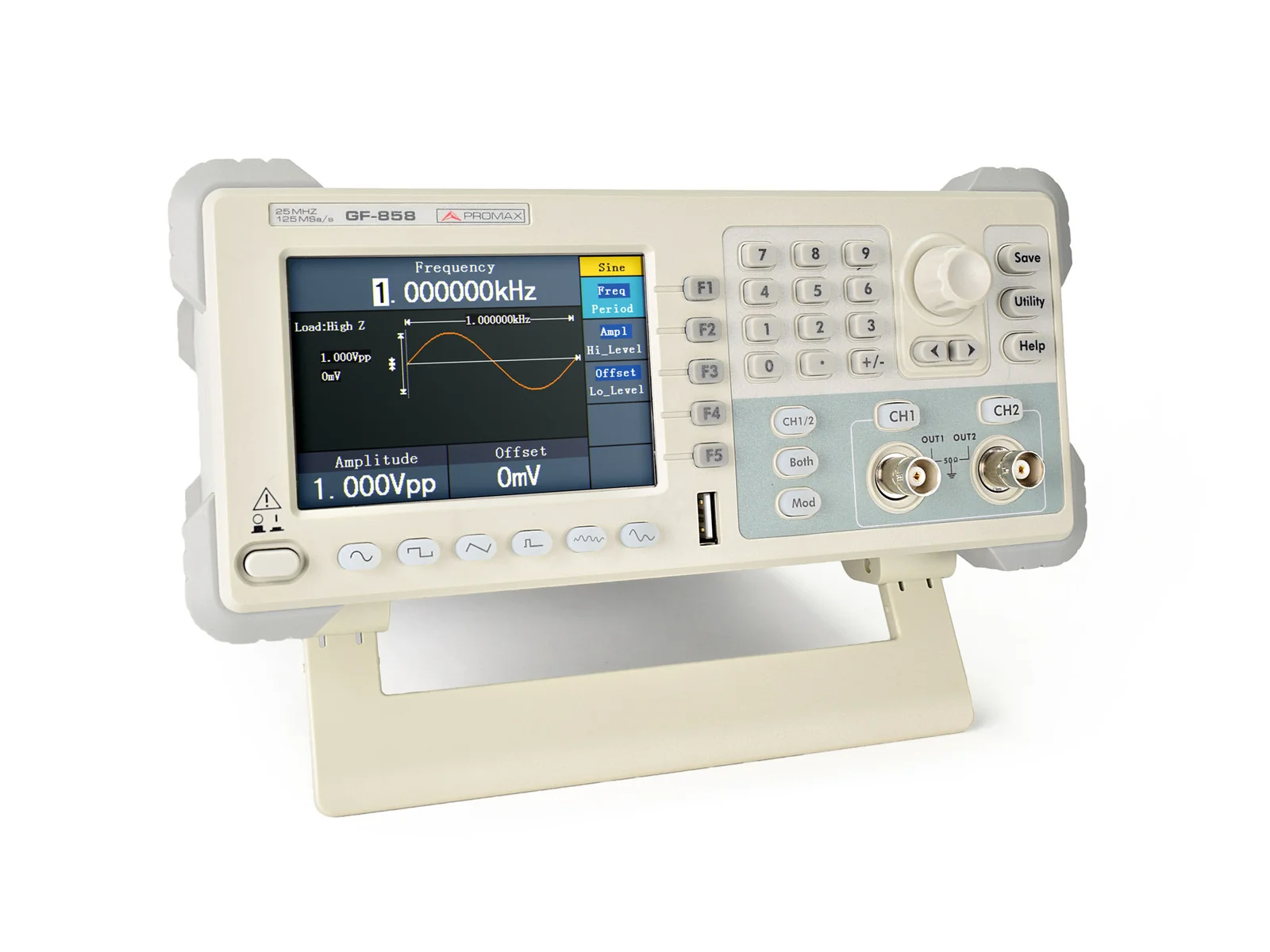

Function Generator

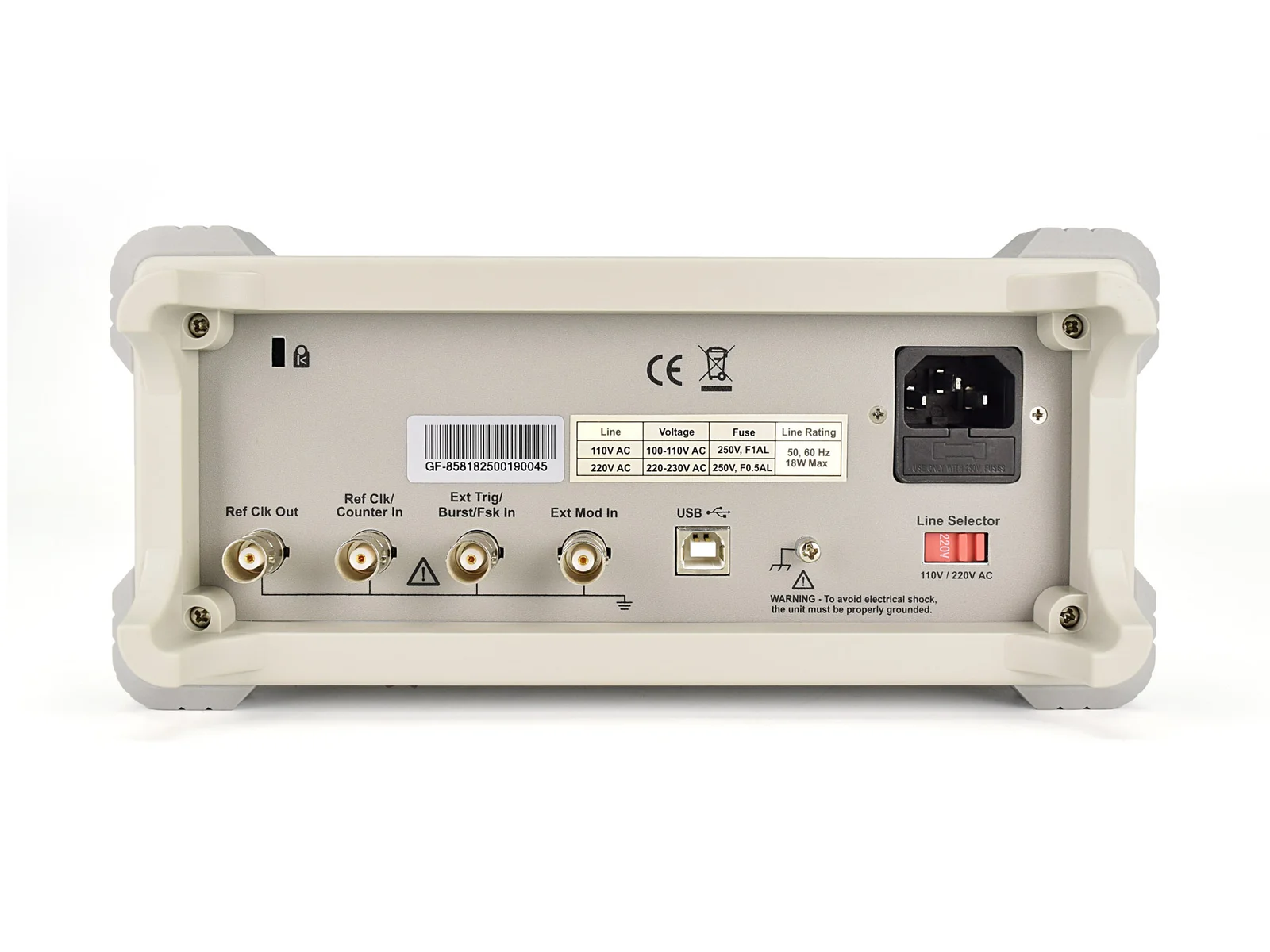

25 MHz, 125 MS/s DDS arbitrary waveform generator with built-in frequency meter and USB remote control capability. It plays all types of analog and digital modulations: AM, FM, PM, FSK and perform sweeps and burst. It also has external modulation and external clock input.

FREQUENCY OUTPUT 25 MHz

SAMPLE RATE 125 MS/s

VERTICAL RESOLUTION 14 bits

WAVEFORMS

Standard Sine, Square, Pulse, Ramp and Noise

Arbitrary Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave and others, a total 48 built-in waveforms and user-defined arbitrary waveform

COUNTER From 100 mHz to 200 MHz, 6 digits

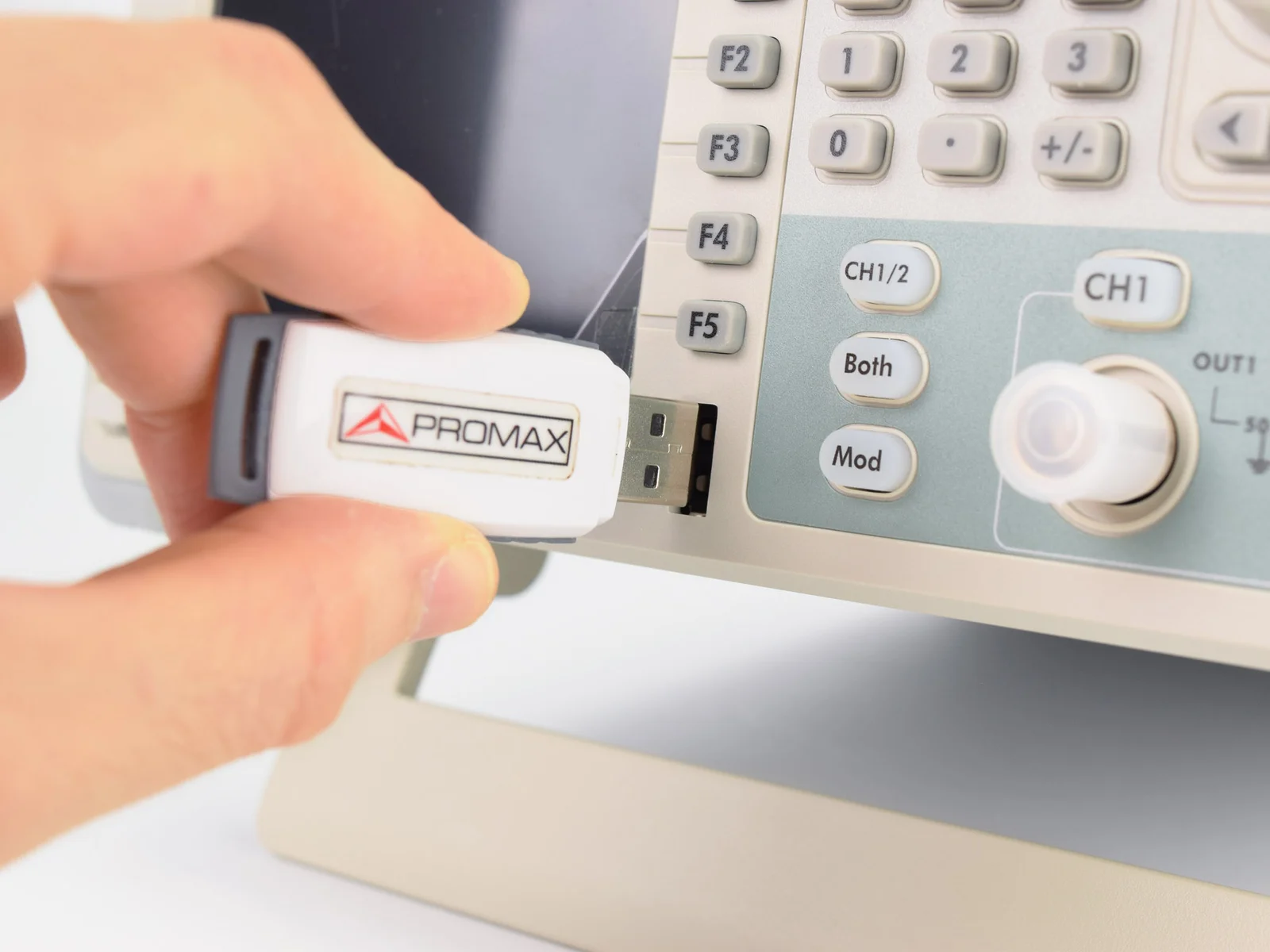

INTERFACES USB host, USB device, LAN (supports remote control)
