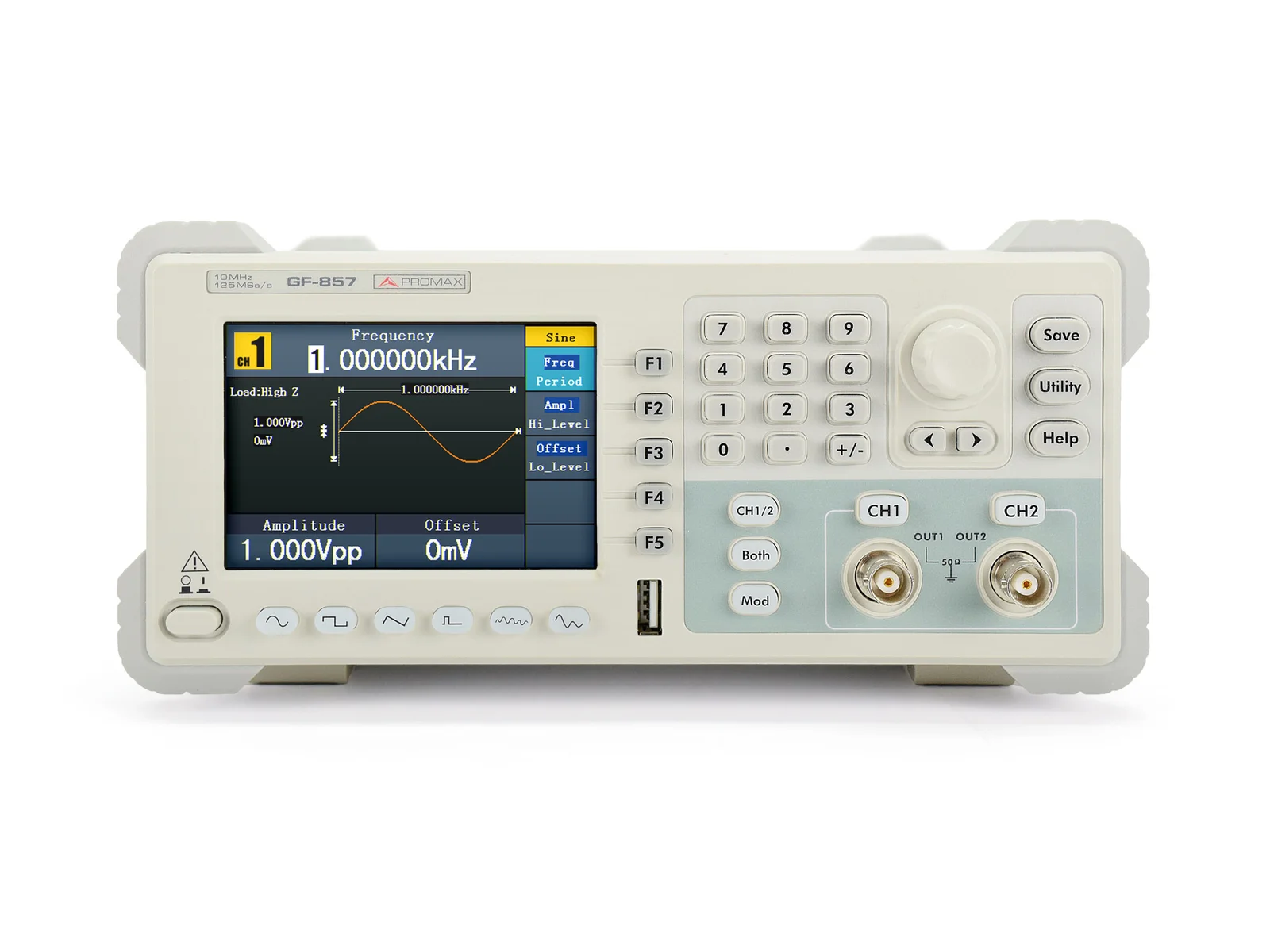

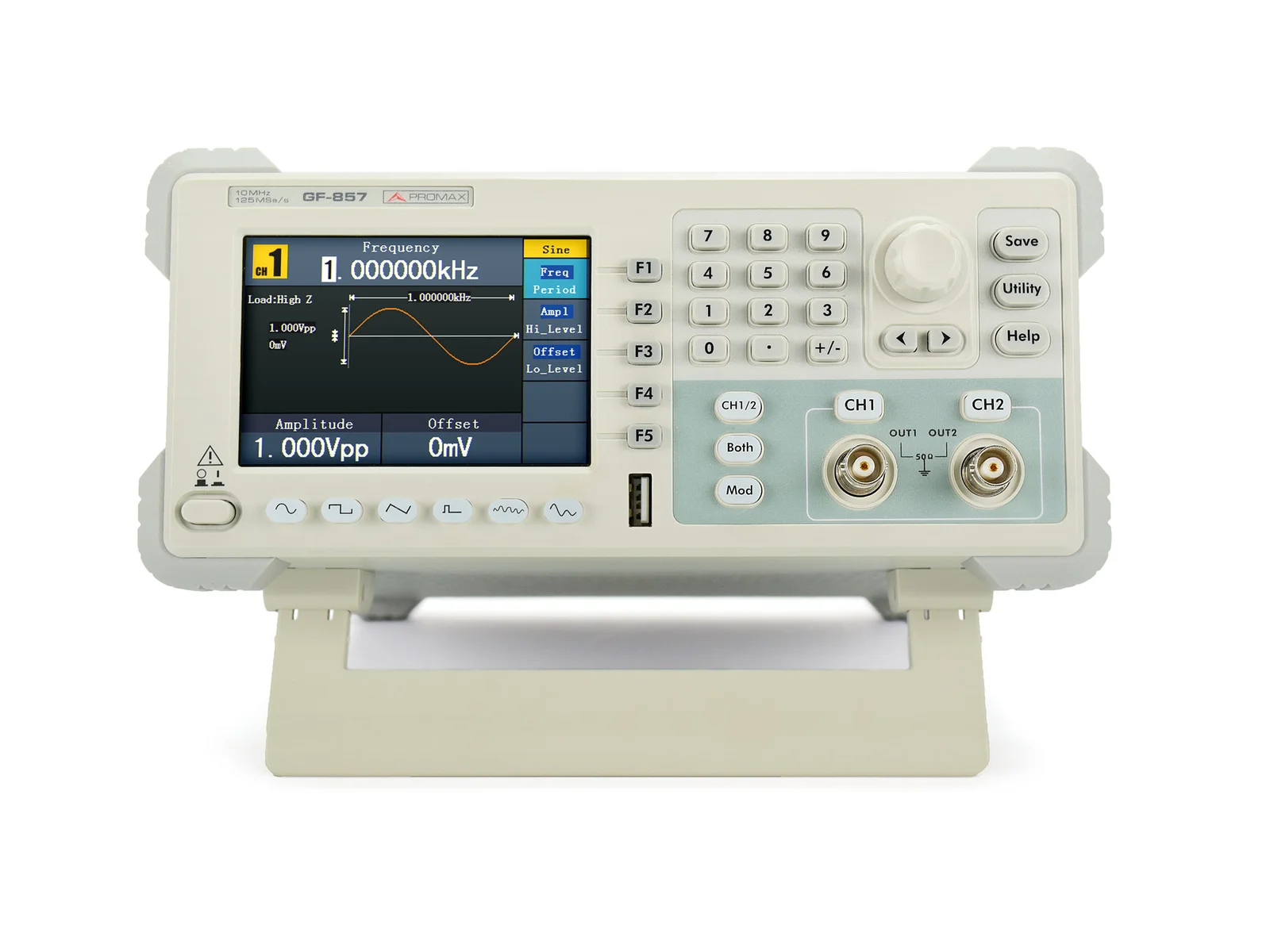

Function Generator

10 MHz, 125 MS/s DDS arbitrary waveform generator with built-in frequency meter and USB remote control capability. It plays all types of analog and digital modulations: AM, FM, PM, FSK and perform sweeps and burst. It also has external modulation and external clock input.

FREQUENCY OUTPUT 10 MHz

SAMPLE RATE 125 MS/s

VERTICAL RESOLUTION 14 bits

STANDARD WAVEFORM Sine, Square, Pulse, Ramp and Noise

ARBITRARY WAVEFORM Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave and others, total 45 built-in waveforms and user-defined arbitrary waveform

MODULATION AM, FM, PM, FSK, Sweep and Burst

MODULATION FREQUENCY 2 MHz to 20 kHz (FSK 2 mHz - 100 kHz)

COUNTER 100 mHz to 200 MHz

COMMUNICATION INTERFACE USB, RS-232 (optional)
