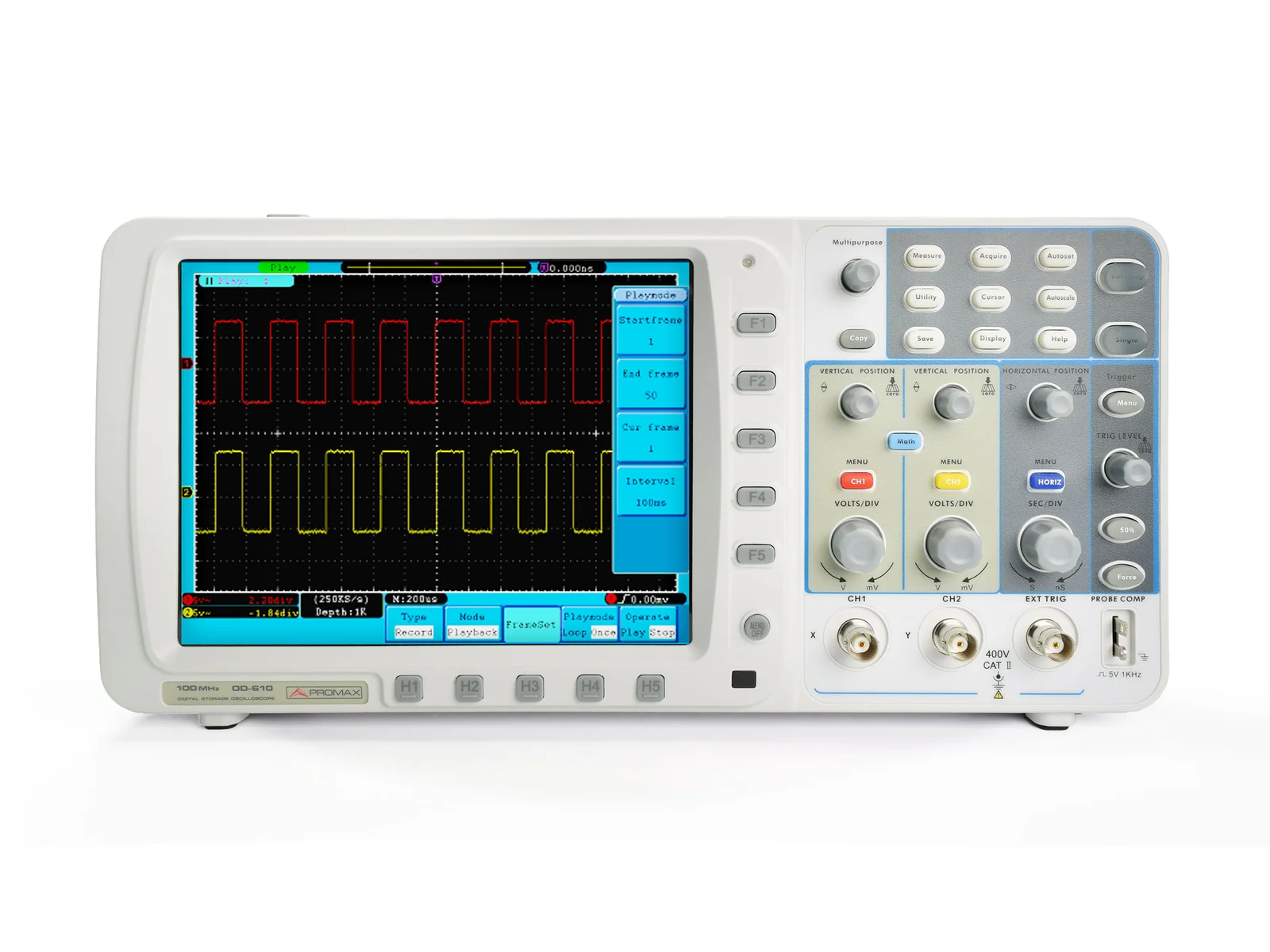

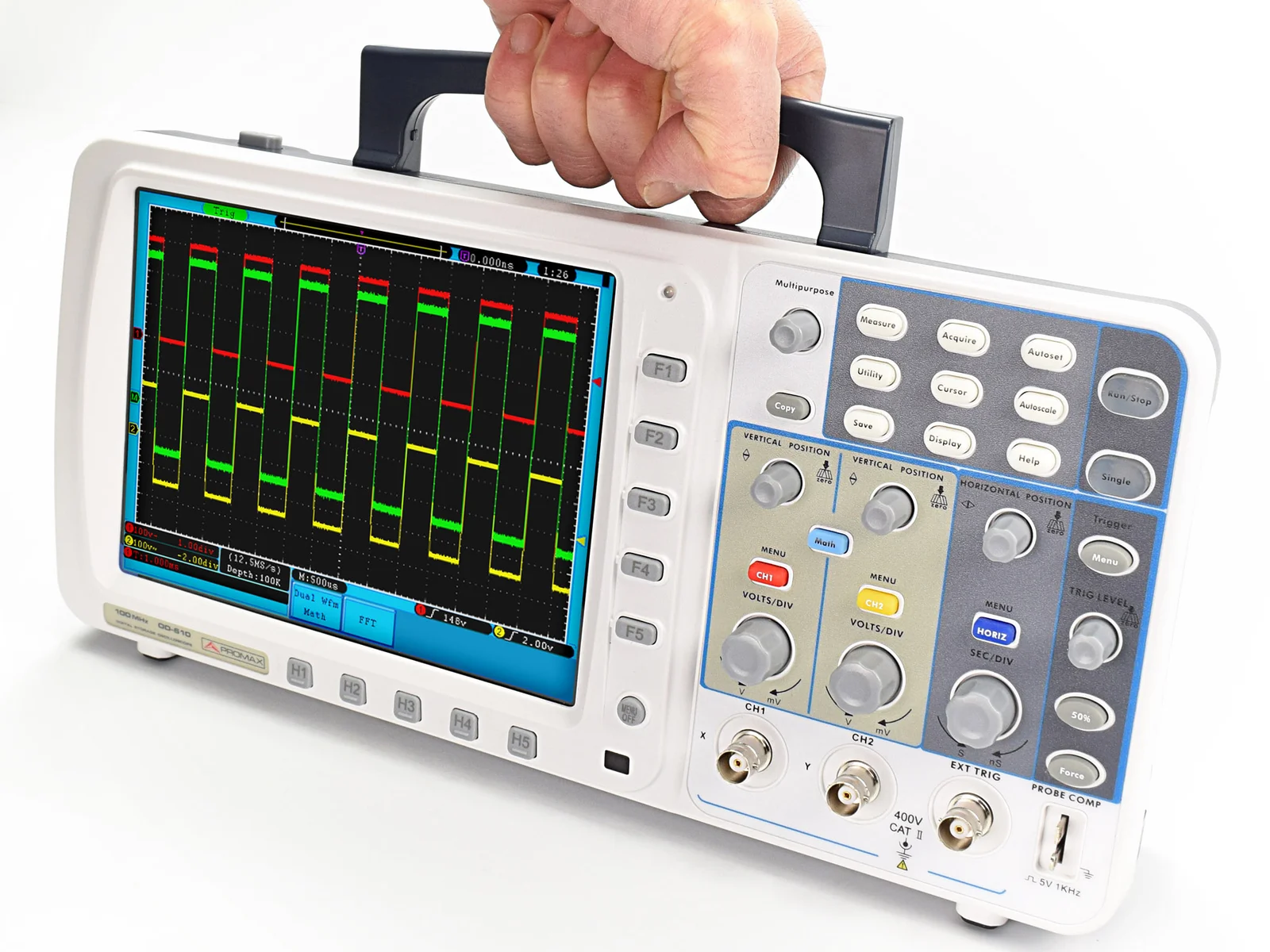

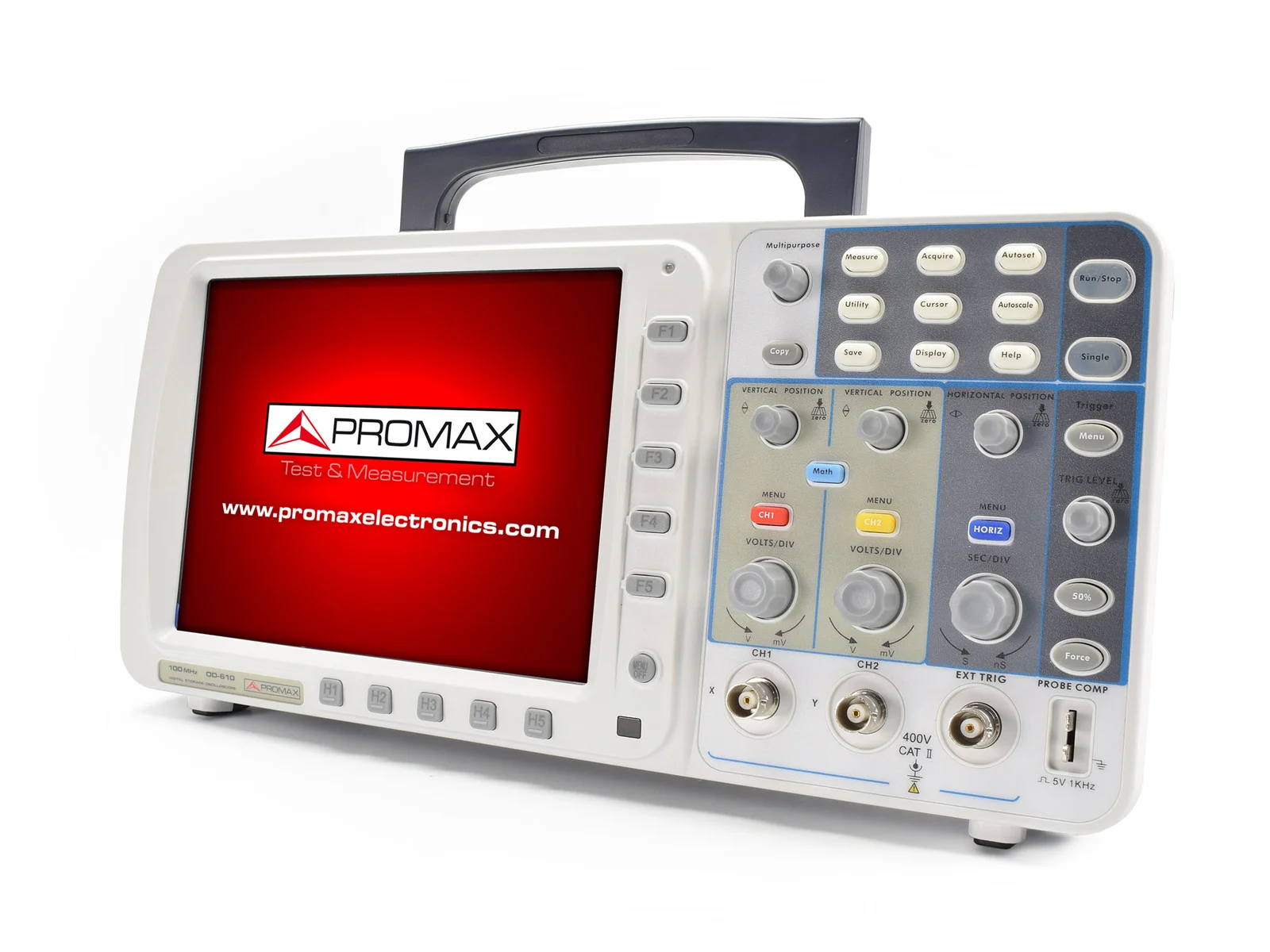

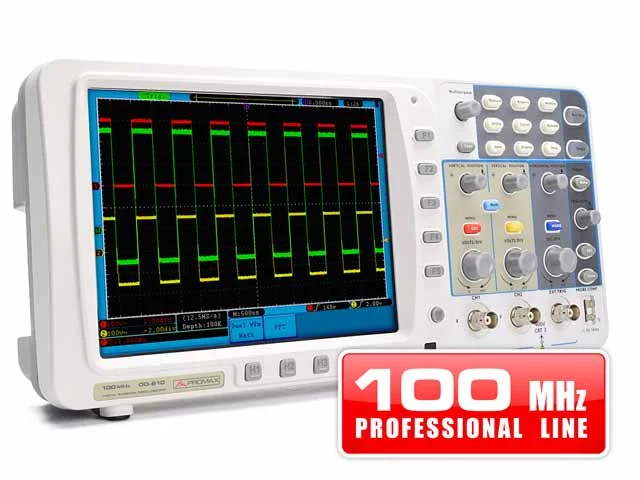

Digital Storage Oscilloscope

Digital storage oscilloscope featuring up to 100 MHz of bandwidth and up to 1 GS/s real time sample rate. 8” screen and connectivity: USB 2.0, USB for file storage, LAN and RS-232.

BANDWIDTH 100 MHz

SAMPLE RATE 1 GS/s

CHANNELS 2 + 1 (external)

HORIZONTAL SCALE (s/div) From 4 ns/div to 100 s/div, 1-2-4 steps

TRIGGER Edge, Pulse, Video, Slope, Alternate

RECORD LENGTH 10 M

SCREEN 8” color TFT display, 800x600 pixels

COMMUNICATION INTERFACES USB 2.0, USB for file storage, LAN port, RS-232 port

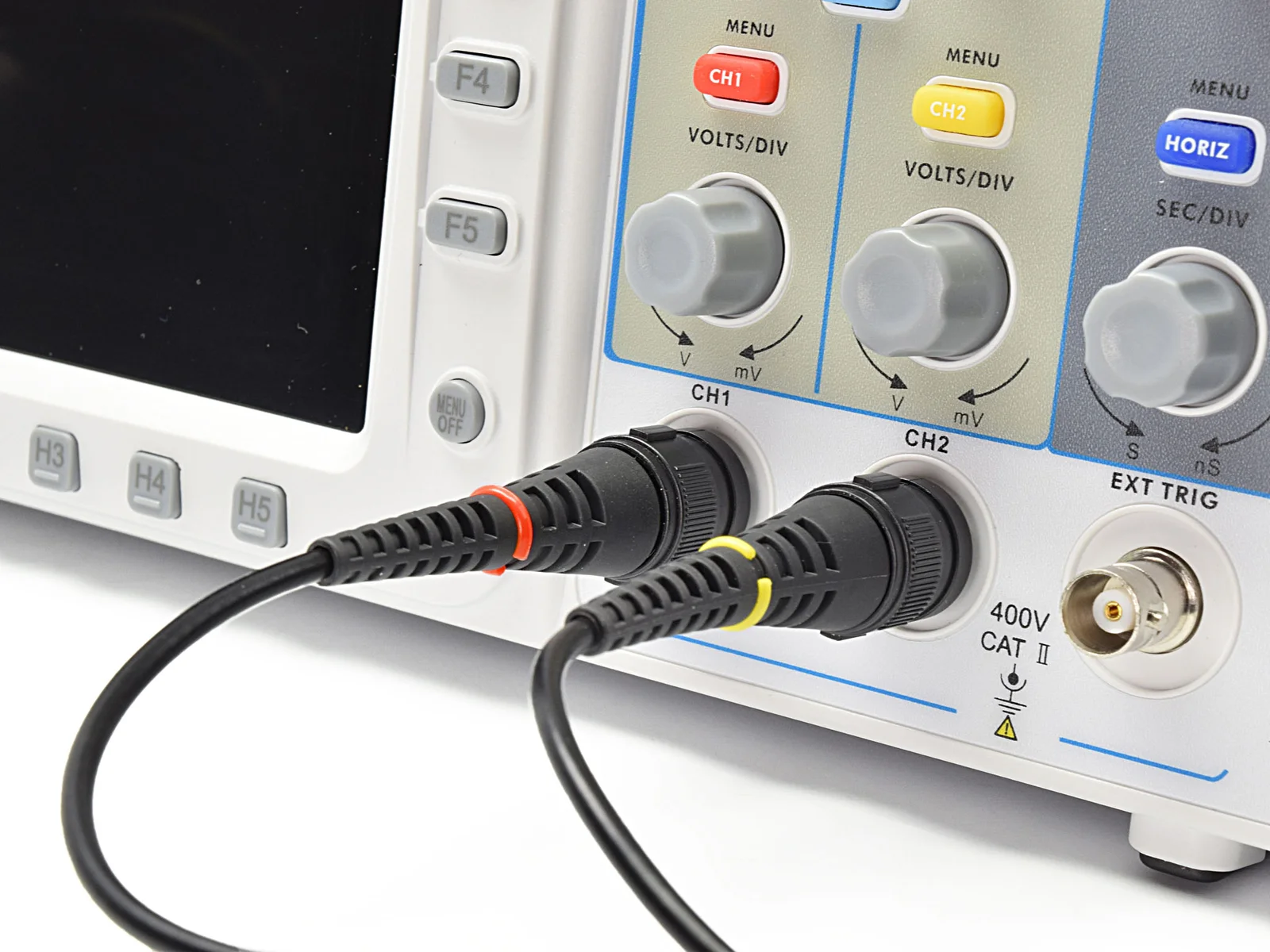

INCLUDED ACCESSORIES Passive probe (x2), Power cord, USB cable, Quick guide

OPTIONAL ACCESSORIES Battery
