FTK1475

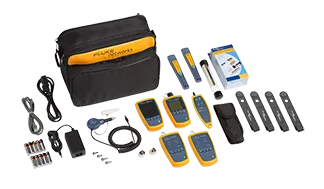

Complete Fiber Verification Kit with FI-500 FiberInspector™ Micro

Kit Contents::

SimpliFiber® Pro Optical Power Meter

Measures optical power levels. Calibrated at 6 wavelengths (850, 1300, 1310, 1490, 1550, 1625 nm).

USB interface for PC connectivity and reporting.

850/1300 nm Multimode Source

LED-based dual-wavelength source for multimode fiber testing.

Simultaneous dual-wavelength emission halves test time.

Auto wavelength switching is supported.

1310/1550 nm Singlemode Source

Laser-based dual-wavelength source for singlemode fiber testing.

Covers OS1 and OS2 fiber types for both short- and long-distance premises links.

VisiFault™ Visual Fault Locator (VFL)

Visible red-light laser (650 nm) for fast fault location, break detection, and fiber continuity/polarity verification.

Non-contact live fiber detection without port connection.

FI-500 FiberInspector™ Micro

200× digital inspection scope with autofocus, 5 MP CMOS sensor, 320×240 backlit display, and built-in PortBright™ flashlight. Probe: 23 mm × 51 mm.

Includes 4 UPC tips (LC, SC, 1.25 mm, 2.50 mm).

FindFiber™ Remote ID Source (×2)

Two FindFiber Remote ID units allow a single technician to perform fiber identification and polarity verification tasks that normally require a two-person team.

Power Meter Adapters (SC, ST, LC)

Three adapter types are included for broad connector compatibility across patch panels and equipment ports in typical enterprise and Data Center environments.

NFC-KIT-BOX Fiber Cleaning Kit

Wet and dry fiber optic cleaning supplies plus 1.25 mm swabs. Addresses contamination discovered during inspection,

Complete inspect-and-clean workflow in one kit.

Magnetic Strap Attachments & Carrying Case

Rare-earth magnetic strap keeps hands free and protects equipment from drops.

Hard carrying case stores and protects all kit components for transport and storage.
