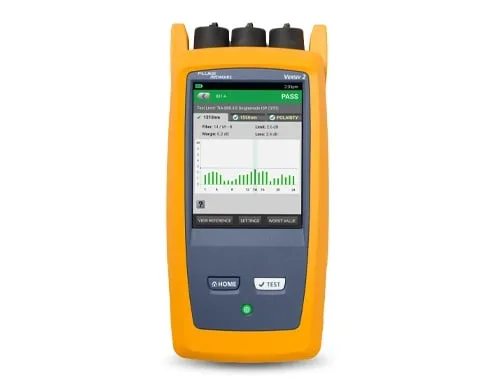

CertiFiber™ Max Optical Loss Test Set

CertiFiber™ Max accelerates accurate testing and troubleshooting, giving you the maximum efficiency advantage in today’s nonstop multi-fiber environment.

Overview

Maximize your Multi-fiber certification efficiency with the CertiFiber™ Max OLTS. Measure loss, length, and polarity of up to 24 fibers in one second. Field-replaceable UniPort™ adapters connect directly to MPO, MMC, pinned and unpinned configurations, and more, giving you maximum flexibility. Set up your projects right the first time with the Versiv™ ProjX management system, or remotely with LinkWare™ Live. Minimize measurement uncertainty with 1-jumper reference setting and an integrated timer that tracks time since the reference was set, and a counter for the number of times a Test Reference cord has been used. Troubleshoot fast with a built-in multi-fiber VFL, duplex power meter, and optional end face inspection.

And it’s all on the powerful, proven Versiv platform. With more than 10,000 Certified Cabling Test Technicians (CCTT) in the field, the CertiFiber Max OLTS is already part of a familiar, trusted tool set that’s built Fluke rugged, supported by Fluke expertise, and backed by gold-standard Fluke service and experience.

CFM-100S

CertiFiber Max Single-mode OLTS Test Set with two Versiv Mains.

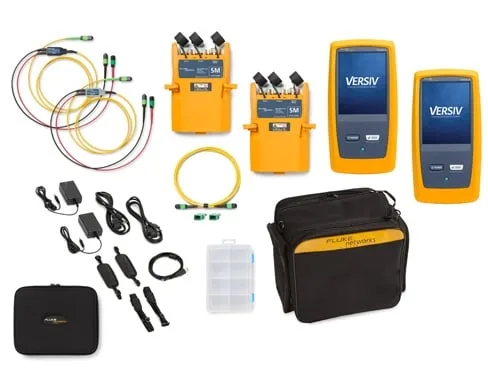

Includes:

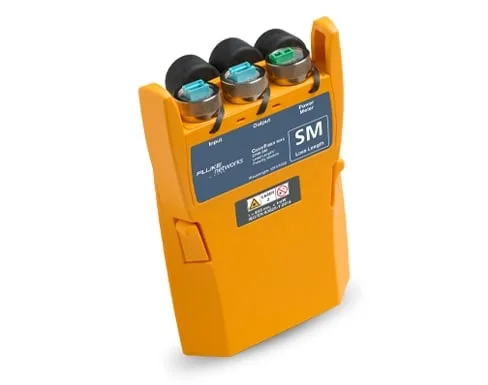

2 Versiv Main units including Wi-Fi, (2) HandStrap, (2) Shoulder Straps, USB Interface Cable, (2) AC Chargers; Two CertiFiber™ Max single-mode modules with MPO 12 pinned UniPort™ adapters, MPO 16 pinned output ports, LC input ports plus test reference cord with connectors for main unit source and meter ports and connection to cable under test; second test reference cord with connectors for remote unit source and meter ports and connection to cable under test, one verification cord and two MPO 12 couplers; Versiv-XL cube case, zippered Test Reference Cord case, UniPort case, safety card, Quick Reference Guide, warranty card and statement of calibration.
