Advanced Digital Circuit Breaker Analyzer

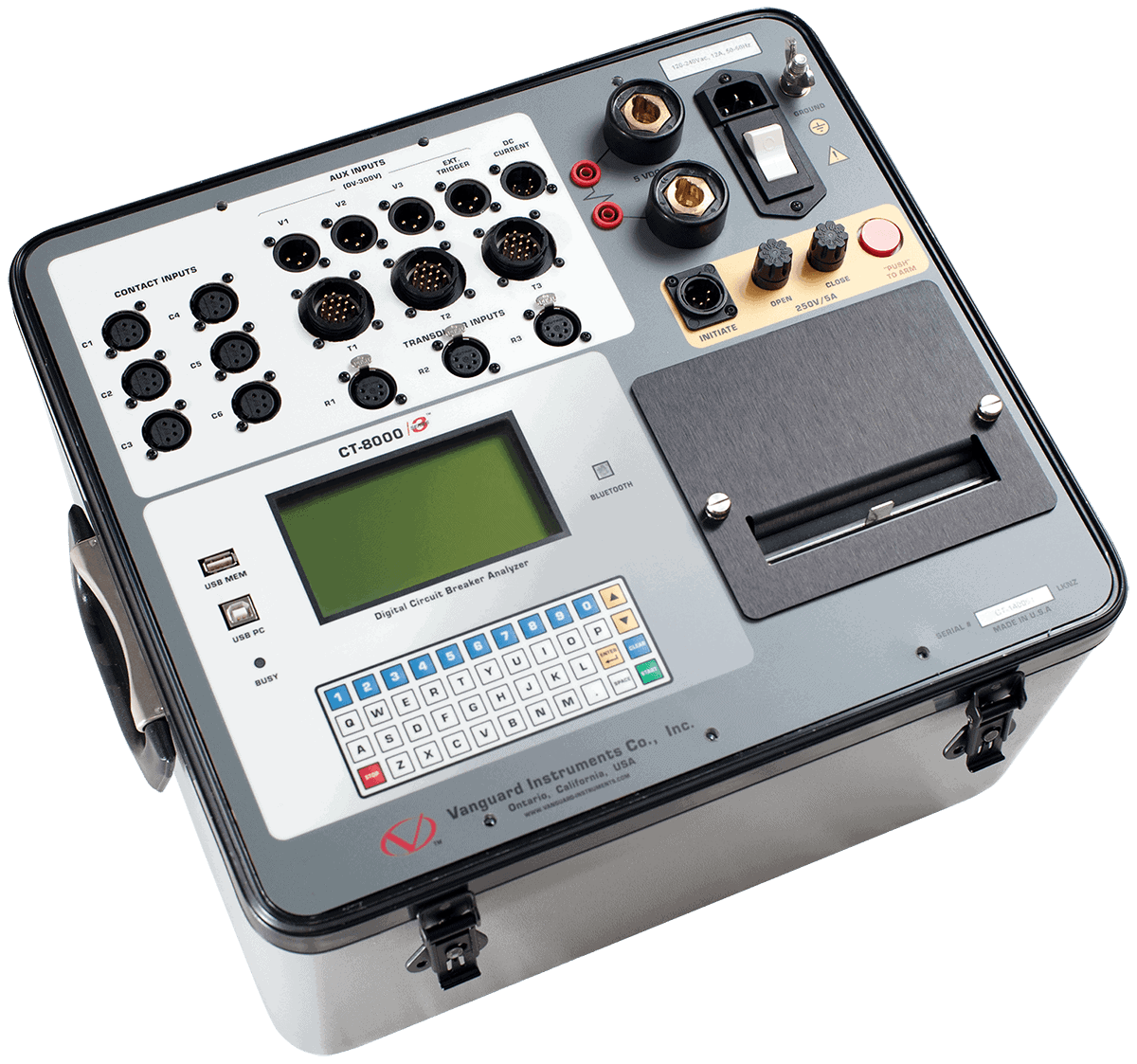

The CT-8000 S3 is Vanguard’s fourth-generation EHV circuit breaker analyzer. The CT-8000 S3 is available with 3 (part number 9103-UC) or 6 contact timing channels (part number 9104-UC). The CT-8000 S3 can fully analyze a circuit breaker’s performance by measuring the main contact and resistor contact time, stroke, velocity, over-travel, bounce back and contact wipes. Also, an outstanding feature of the CT-8000 S3 is the ability to perform dynamic resistance tests on circuit breaker contacts. CT-8000 S3 is also capable of performing dual-side grounded tests on circuit breakers, enhancing safety and accuracy by grounding both sides of the apparatus during testing and helping to reduce test set-up time.

1. Fully analyze circuit breaker’s performance by measuring main contact and resistor contact time, stroke, velocity, over-travel, bounce back and contact wipes
2. Perform dynamic contact resistance test
3. USB computer interface
4. USB Flash drive interface (Flash drive not included)
5. Store up to 200 test records and 100 test plans internally
6. Initiate Breaker Operation
7. Built-in 4.5″ wide Thermal Printer
8. Rugged “QWERTY” style membrane keypad
9. Optional “On-line” Timing Mode
10. Optional dual ground testing mode
11. Optional Bluetooth wireless computer interface
