Tempo Communications

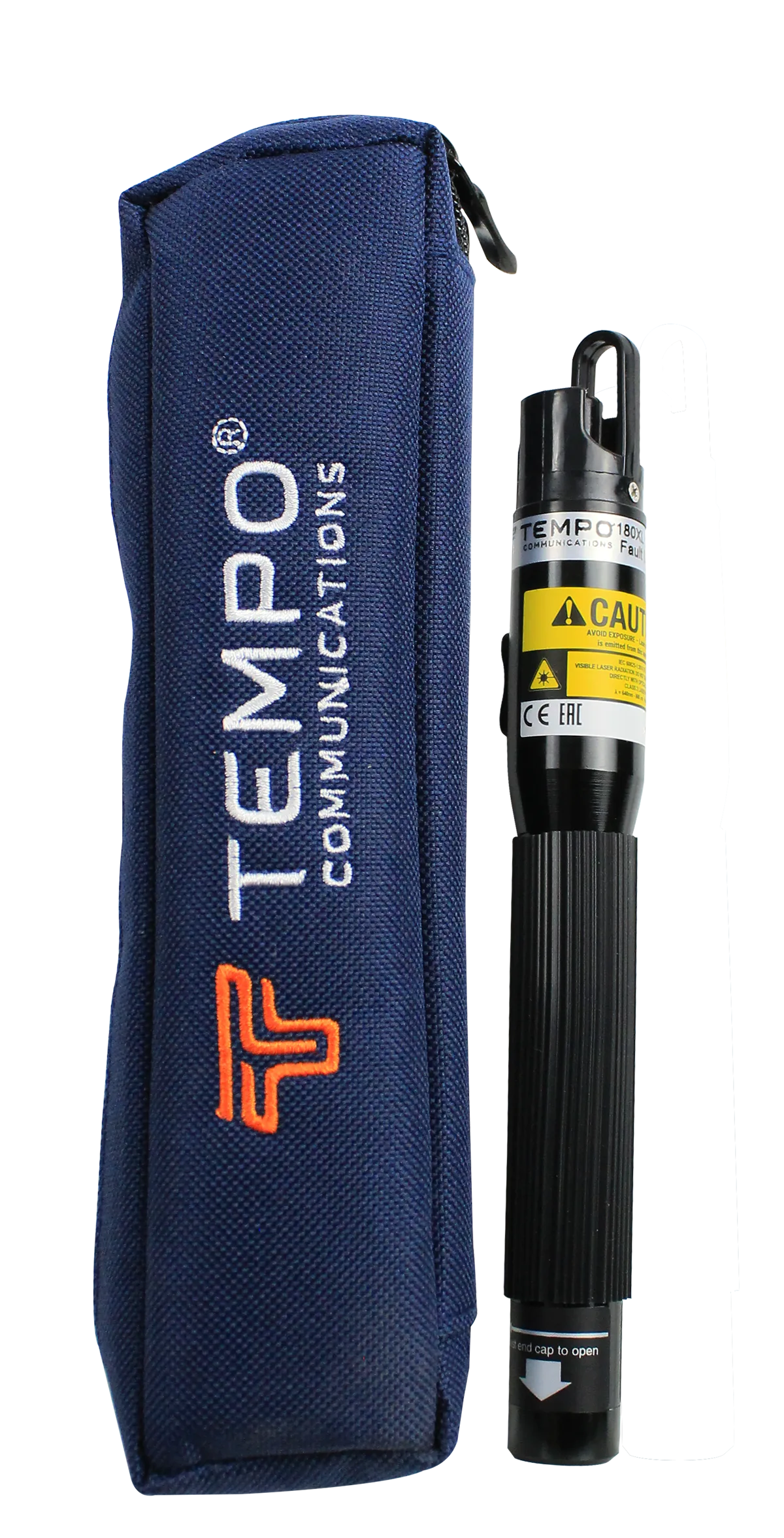

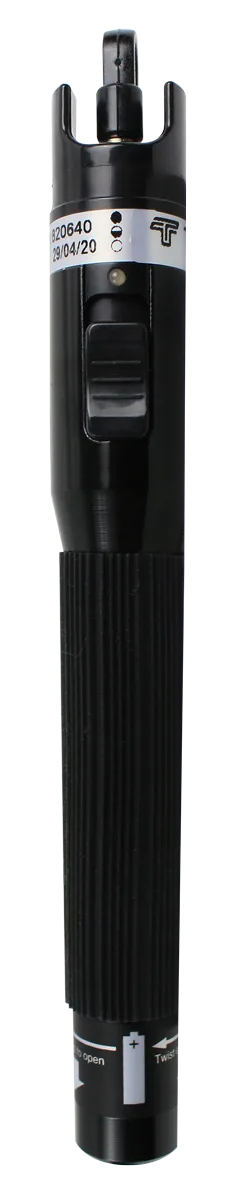

180XL Visual Fault Locator Kit
Model: 180XL

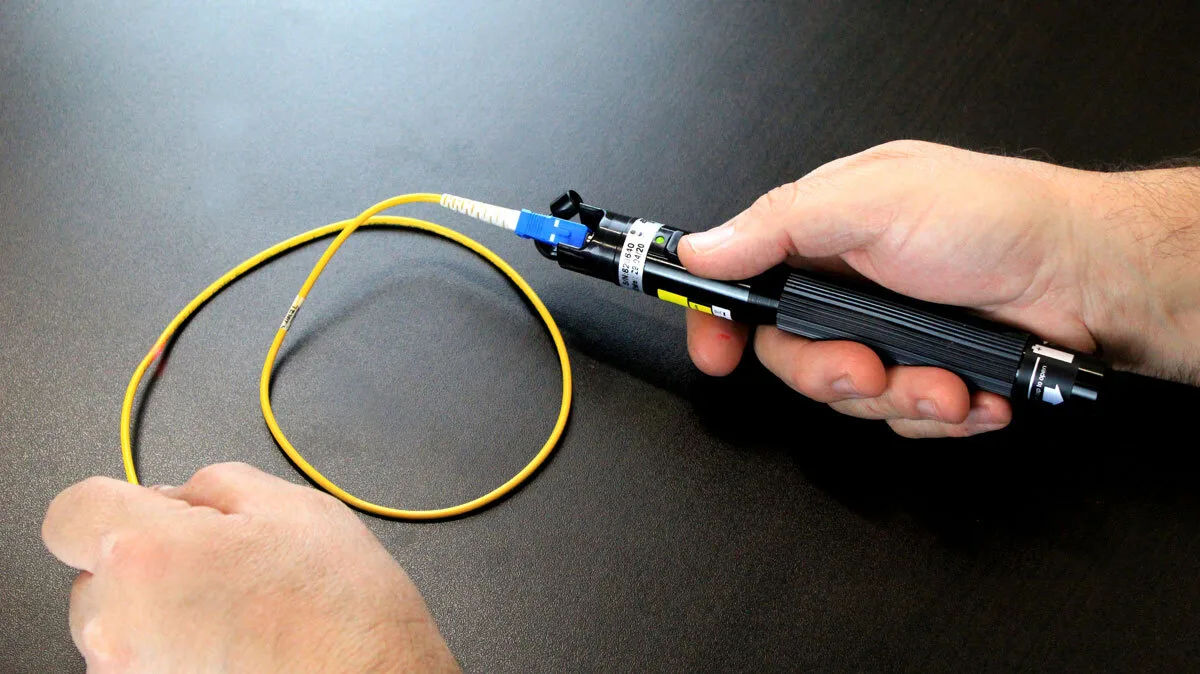

The 180XL visual fault locator allows the technician to quickly and safely visually locate broken and pinched fibers, faulty connectors, and bad splices.
Ask on WhatsAppDetails & specifications
The 180XL visual fault locator allows the technician to quickly and safely visually locate broken and pinched fibers, faulty connectors, and bad splices. The long reach of the 180XL allows the technician to safely confirm fiber continuity.
Overview
- Visual fault locating
- Confirm fiber continuity
- Allows the technician to quickly locate faults without the use of more expensive equipment
- Class 2 designation provides safe light levels for the technician
- 5km distance
- Universal 2.5mm bulkhead
- Optional 1.25mm adapter available
- Class 2 certification, 1 mW maximum output power
- Compatible with Singlemode and Multimode fibers
- 2Hz modulation mode
Specifications
| Wavelength | 650nm +/-10nm |
| Maximum Output Power | 1 mW |
| Typical Output Power | 700μW |
| Laser Classification | Class 2 |
| Modes | CW and 2Hz Modulation |
| Display | Red/Green LED |
| Fiber Type | Singlemode, Multimode |
| Connector Interface | 2.5mm Universal, Optional 1.25mm adapter |
| Battery | AA (2 Included) |
| Battery Life | 80 Hours with 3.9 Wh Batteries |
| Weight | 0.26lbs, (120g) (not including batteries) |
| Dimensions | 7.08” x 0.91” Dia (180mm x 23mm Dia) |
| Operating Temperature | -10ºC to +45ºC |
| Storage Temperature | -40ºC to +70ºC |
| Maximum Distance | 5km |
