TV Signal & Spectrum analyzer with 4K decoder

Professional Signal Analyzer designed for expert installers and broadcast engineers. It includes a 4K decoder plus all the RANGER Neo 3 functions.

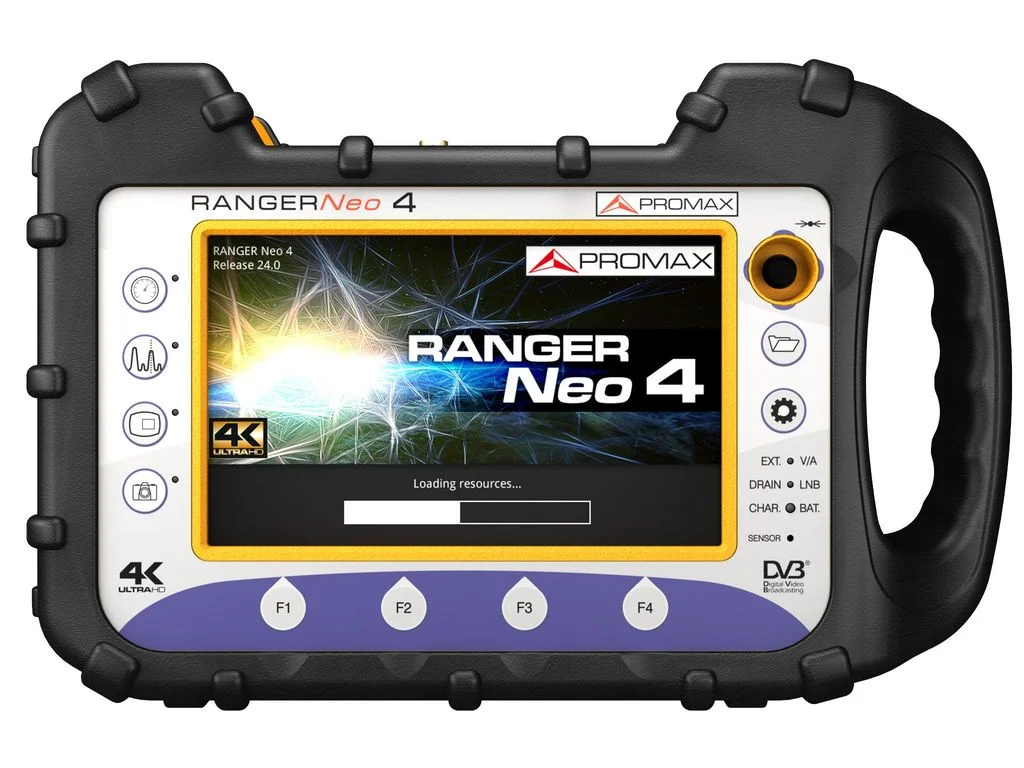

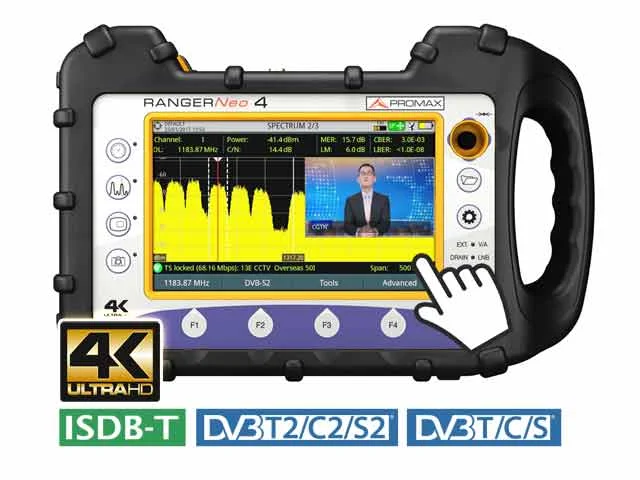

OPERATION MODES Hybrid operation: 7” touch screen or conventional buttons

DIGITAL STANDARDS

DVB-T, DVB-T2, DVB-T2 lite

DVB-T2-MI (Gateway to modulator)

DVB-C, DVB-C2

DVB-S, DVB-S2, DVB-S2 multistream

ISDB-T/Tb

DSS, ACM/VCM/CCM

MPEG-TS

VIDEO CODECS MPEG-2, MPEG-4 H.264, HEVC H.265

AUDIO CODECS MPEG-1, MPEG-2, HE-AAC, Dolby Digital, Dolby Digital Plus

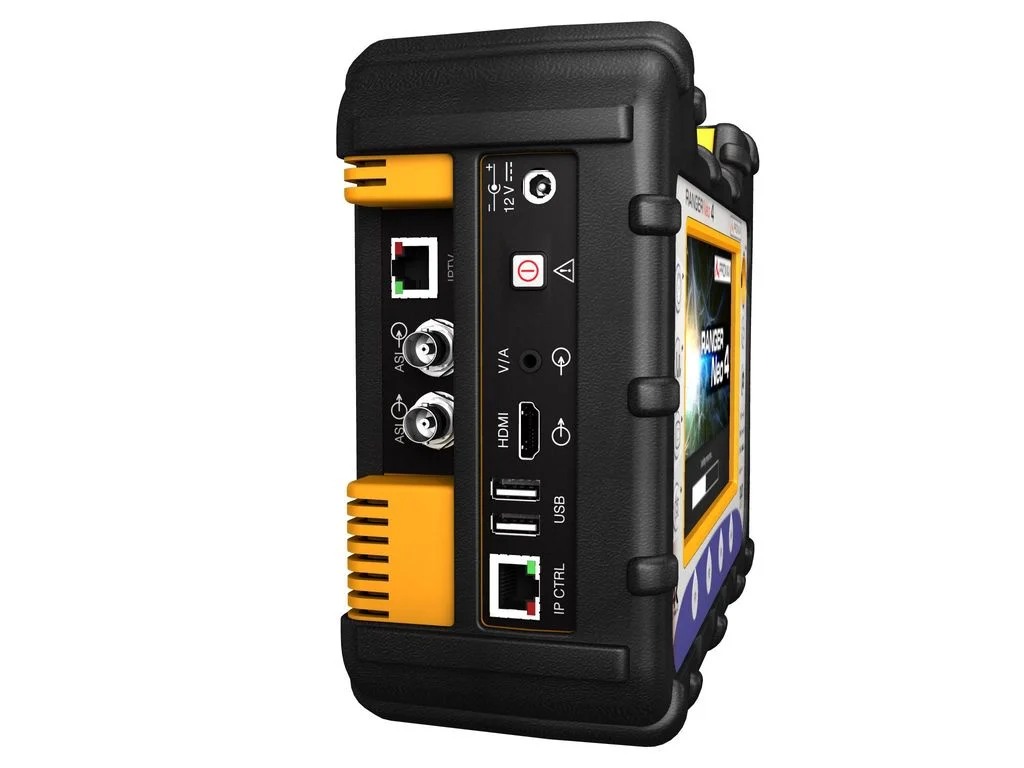

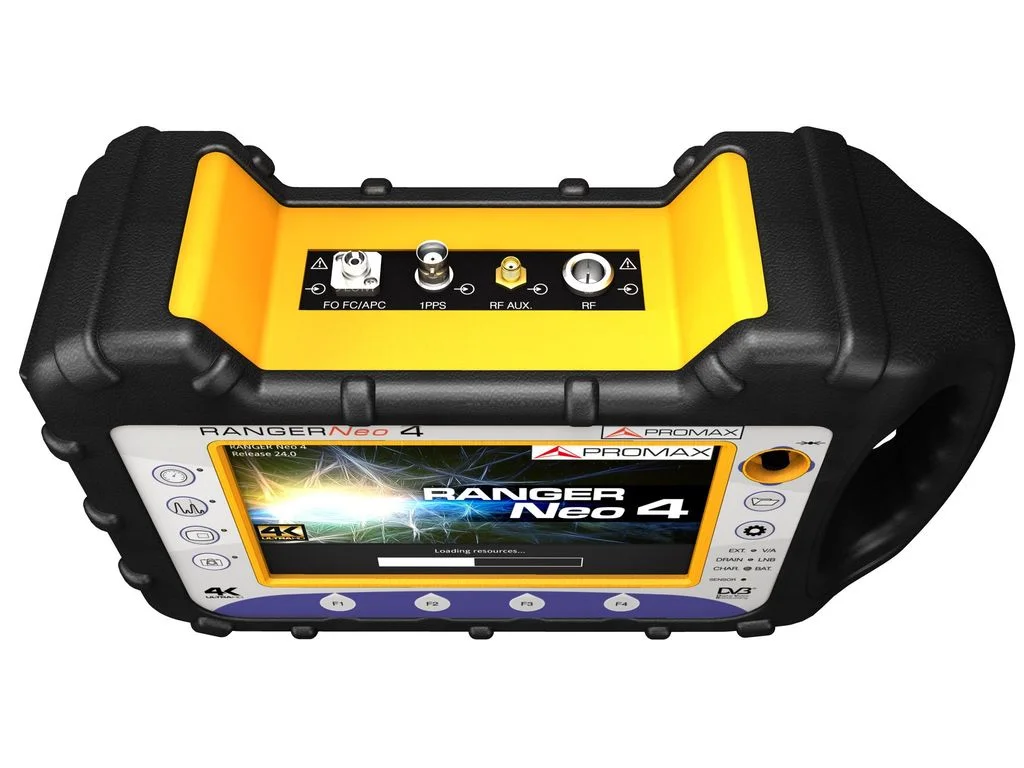

INPUTS AND OUTPUTS

Universal RF connector 75 Ω

ASI-TS input and output

IPTV input UDP/RTP RJ45 Ethernet 1 Gbps

HDMI™ output

IP input for remote control

Analogue Video/Audio input

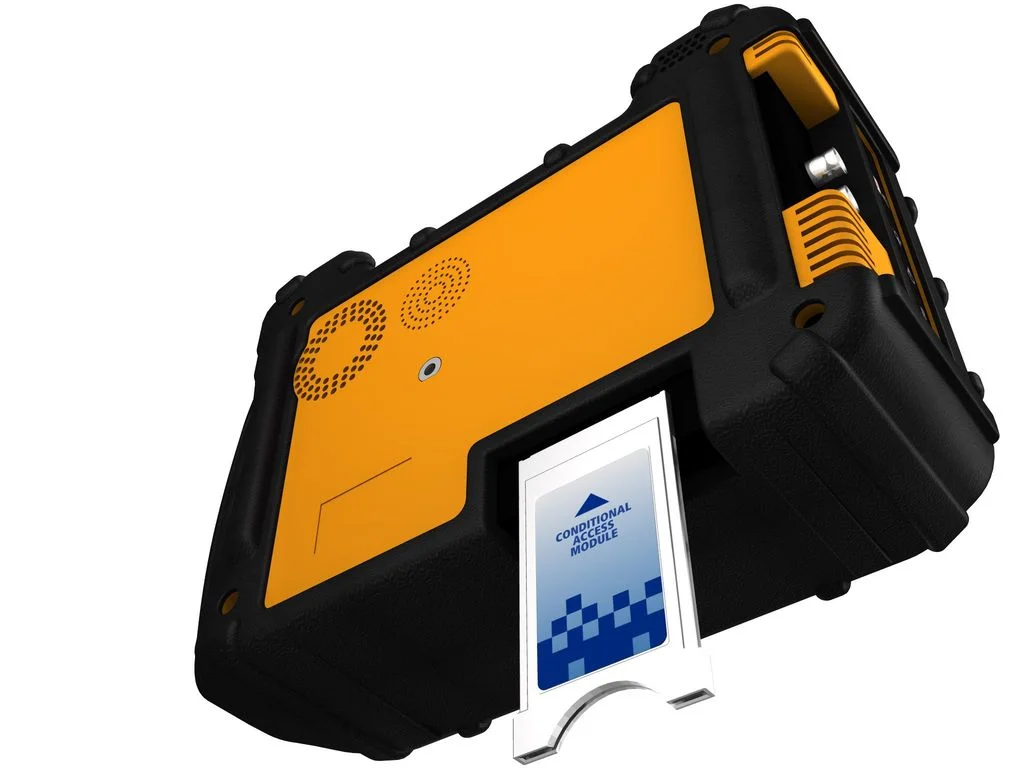

Common Interface module slot

1 pps input

2xUSB for data transferring and GPS module

FUNCTIONS

4K decoder

GPS Coverage Analysis

Network delay (DVB)

DVB-T2-MI analysis

IPTV multicast measurement and decoding

TS analysis

TS recording

Merogram

Spectrogram

Signal monitoring

Remote control (webControl)

MER by carrier

Video/Audio Streaming

SCAN + TILT

Shoulder attenuation

Constellation diagram

LTE ingress test

Dynamic echoes analysis

StealthID (instant identification of tuning parameters)

PLS (Physical Layer Scrambling)

Ultra fast spectrum analyzer (70 ms sweep time)

MAX and MIN hold

FM RDS radio measurement and decoding

Screenshots and Datalogger for measurement reports

Beacon-Flyaways for SNG & VSAT

Wideband LNB

WiFi 2.4 GHz

LTE 1.8 GHz

OTT

Service Recording

Field strength measurement

Task planner

RESOLUTION BANDWIDTHS

2, 10, 20, 30, 40, 100, 200 kHz

1 MHz

OPTIONS

Advanced DAB/DAB+ analyzer

Advanced FM radio analyzer

Rack assembly 19” 4U: 482 (W.) x 178 (H.) x 205 (D.) mm

OPM + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input

WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input

PC CONNECTION (via ethernet interface)

NetUpdate 4 (free software)

Free and automatic firmware updates

Remote control (web control)

User-customized channel plans

Measurement reports and screenshots

Audio/Video streaming
