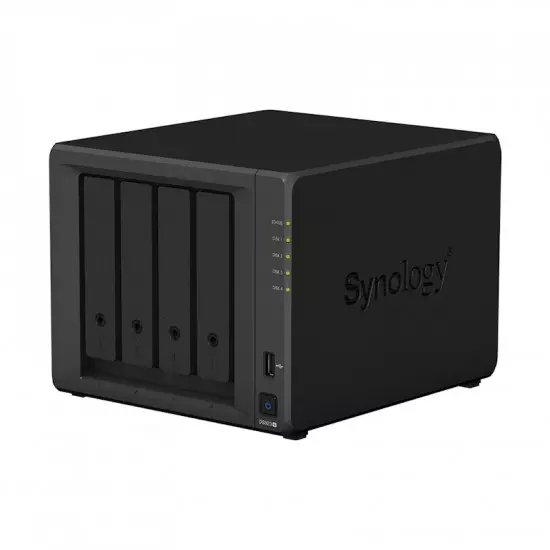

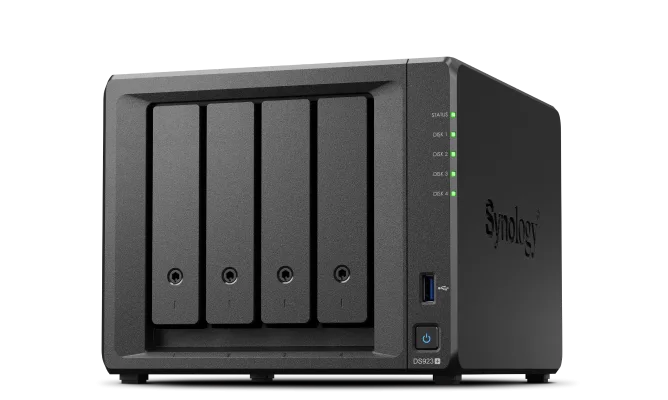

SYNOLOGY DS923+ DISKSTATION

The Synology DS923+ is a powerful four-bay NAS that can be easily modified or expanded as your needs change. It also offers optional support for up to nine drives and faster networking and NVMe SSDs for caching or creating additional storage pools.

Powered by Synology DiskStation Manager (DSM), it offers a flexible all-in-one solution for data sharing, synchronization, backup and monitoring.

Key properties

Reliable performance - Sequential read/write throughput of up to 625/559MB/s enables fast and efficient file operations.

Universal network storage - Take advantage of built-in solutions for file and photo management, data protection, virtualization, and monitoring.

Fast and stable network connection - Two 1GbE ports enable rapid integration into existing environments (with optional 10GbE connectivity to handle more specialized bandwidth-intensive applications).

Easy Capacity Expansion - Add 5 additional disk bays via a single DX517 expansion unit (sold separately) for a maximum of 9 disk storage.

Extended Product Support - The device is covered by Synology's 3-year limited hardware warranty, which can be extended up to 5 years.

TECHNICAL PARAMETERS

CPU: AMD Ryzen R1600, 2 cores, frequency 2.6GHz (base)/3.1GHz (turbo)

Hardware encryption system: Yes (AES-NI)

Memory: 4GB DDR4 ECC

Maximum memory capacity: 32GB (2x 16GB)

Number of hard disk bays: 4

Compatible disk types: 4x 3.5" SATA HDD or 2.5" SATA SSD, 2x M.2 2280 NVMe SSD

Hot-swappable: Yes (except M.2 SSD)

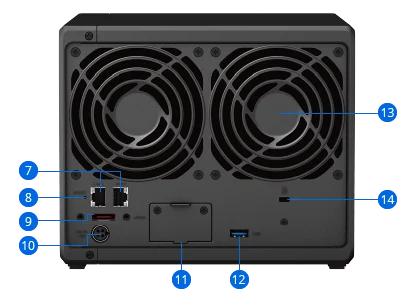

External ports: 2x RJ-45 1GbE LAN (with support for Link Aggregation/Failover functions), 2x USB 3.2 Gen 1, 1x eSATA

Size (HxWxD): 166x199x223mm

Weight: 2.24 kg

Noise level: 22.9dB(A)

Power supply unit/adapter: 100W

AC input voltage: 100V to 240V AC

Frequency: 50/60Hz

System fan: (92x92x25mm) x2

Operating temperature: 0°C to 40°C

Maximum number of concurrent download jobs: 80

Package contents

Main Unit X 1

Accessory Pack X 1

AC Power Adapter X 1

AC Power Cord X 1

RJ-45 LAN Cable X 2

Quick Installation Guide X 1

Optional accessories

DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G

Expansion Units: DX517

Enterprise Series 3.5" SATA HDD: HAT5300 Series

Plus Series 3.5" SATA HDD: HAT3300 Series

Enterprise Series 2.5" SATA SSD: SAT5200 Series

Enterprise Series M.2 2280 NVMe SSD: SNV3400 Series

10GbE Network Upgrade Module: E10G22-T1-Mini
