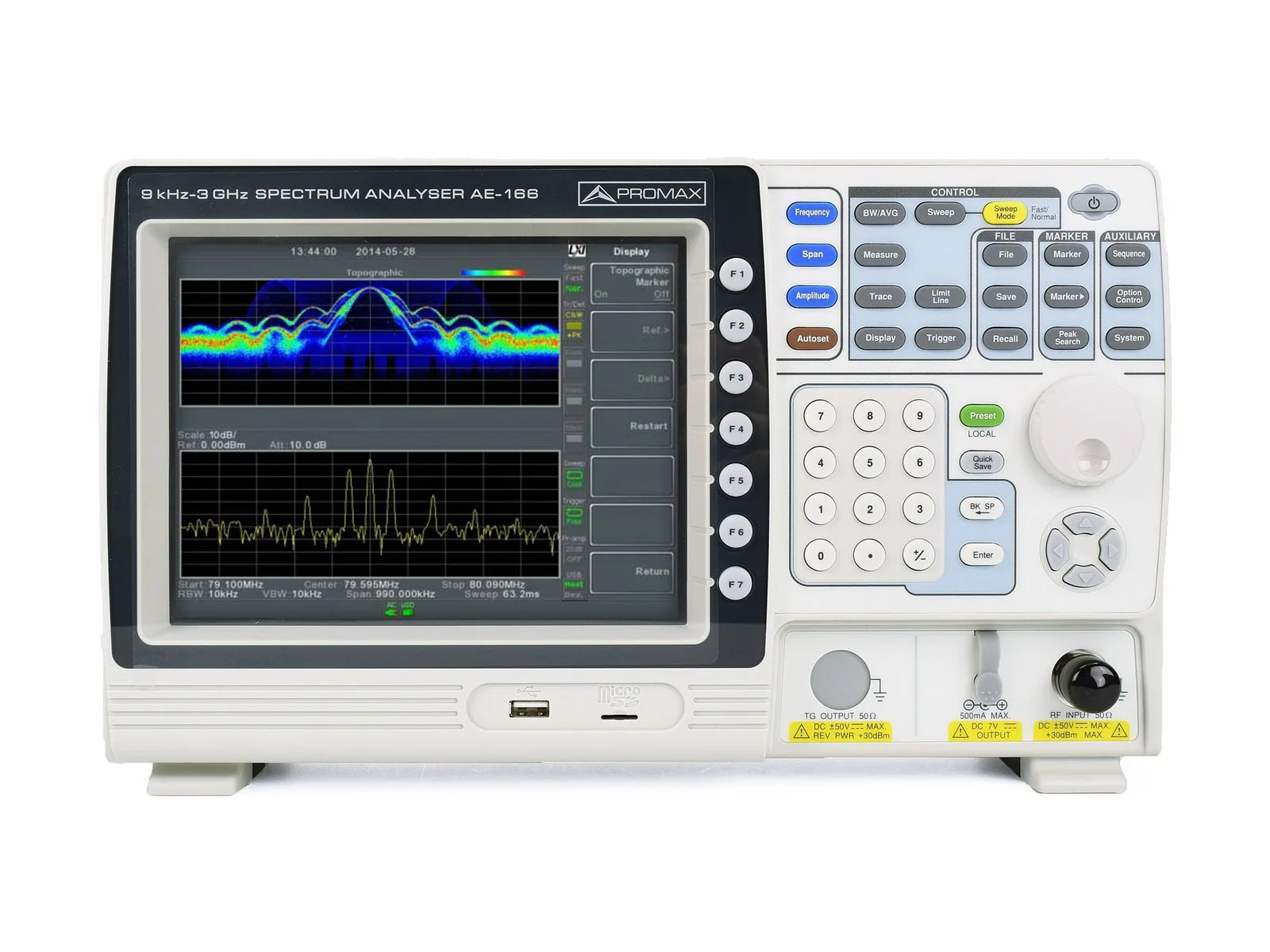

RF SPECTRUM ANALYZERS

Light and compact spectrum analysers with built-in preamp, uncertainty power measurement and tracking generator (AE-167 model).

FREQUENCY MARGIN 9 kHz to 3 GHz

RESOLUTION 1 Hz

LEVEL DISPLAY 4 traces

Scales Log, linear

Units dBm, dBmV, dBµV, V, W

Display Trace, Topographic, Spectrogram (Single/split windows)

SWEEP Contiuous or single. 50 µs to 1000 s

RF PREAMP 1 MHz to 3 GHz. Gain 18 dB

TRACKING GENERATOR (AE-167) 100 kHz to 3 GHz

INPUTS AND OUTPUTS

RF input

VSWR

USB 2.0 host

USB 2.0 device

microSD socket

Reference output

Reference input

Alarm output

Trigger input

Gated sweep input

LAN TCP/IP interface

FI output

Headphone output

Video output

RS-232C interface

AC power input

DISPLAY Extra large 8” LCD screen

OPTIONAL ACCESSORIES

Soft carrying bag

6U rack mounting kit

BATTERY PACK Optional
